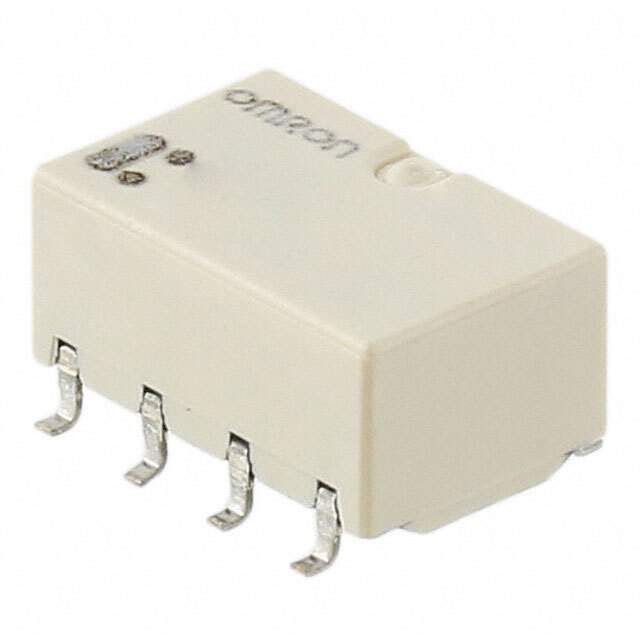

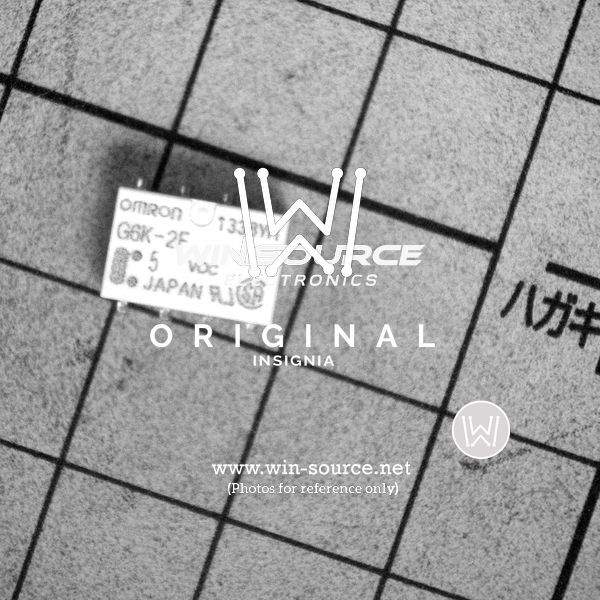

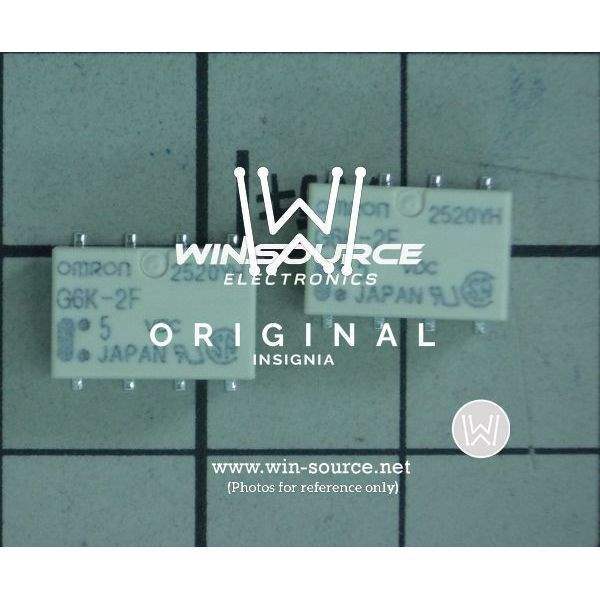

The G6K-2F-DC5 is a compact signal relay manufactured by Omron. It is designed for high-density mounting and low power consumption, making it suitable for a variety of telecommunications, measurement, and control applications. This relay features a 2 Form C (DPDT) contact arrangement and operates with a 5VDC coil voltage.

Applications:

• Telecommunications Equipment: Used in line switching, signal routing, and modem applications.
• Measurement Equipment: Employed in testers, data acquisition systems, and other precision instruments.
• Control Equipment: Integrated into programmable logic controllers (PLCs), industrial control systems, and automation devices.
• Security Systems: Used in alarm systems, access control, and surveillance equipment.
• Medical Equipment: Utilized in patient monitoring systems, diagnostic devices, and laboratory instruments.

Features:

• Compact Size: Allows for high-density mounting on printed circuit boards (PCBs).
• Low Power Consumption: Reduces overall system power requirements and extends battery life in portable applications.
• High Sensitivity: Requires minimal coil power for reliable switching.
• 2 Form C (DPDT) Contact Arrangement: Provides versatile switching options for various circuit configurations.
• High Dielectric Strength: Ensures electrical isolation between coil and contacts for safe operation.
• Long Life Expectancy: Offers high reliability and extended operational life.

Benefits:

• Space Savings: Compact design enables efficient use of board space.
• Energy Efficiency: Low power consumption minimizes energy waste.
• Versatile Switching: 2 Form C contact arrangement supports a wide range of applications.
• Reliable Performance: High sensitivity and long life expectancy ensure dependable operation.
• Enhanced Safety: High dielectric strength provides electrical isolation and protects against voltage surges.

Additional Details:

The G6K-2F-DC5 relay has a coil resistance of approximately 200 ohms and a typical operate time of 3 ms. Its contact rating is typically 0.3A at 125VAC or 1A at 30VDC. The relay is available in through-hole mounting configurations. The materials used in the relay are selected for their high reliability and environmental compatibility.

The G6K series is known for its excellent performance in low-signal switching applications. Its small size and low power consumption make it an ideal choice for modern electronic devices where space and energy efficiency are critical.
