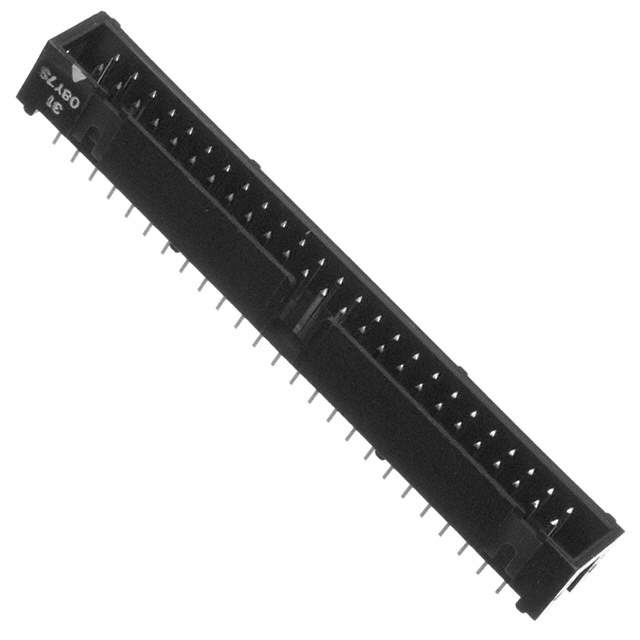

XG4C-5071

Name: XG4C-5071
Brand: Omron
SKU: 1050886
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	XG4C-5071
Manufacturer	Omron
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Omron Electronics Inc-EMC Div
Series	XG4
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	50
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.480" (12.19mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin
Contact Material	Brass, Nickel
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	300V
Mated Stacking Heights	10.1mm, 19mm, 20.2mm
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	XG4C
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	XG4C5071,XG4C-5071 BY OMZ,XG4C-5071-ND,Z12440
Standard Package	40
Win Source Part Number	1050886-XG4C-5071
Ultra Librarian 3D Model	Ultra Librarian XG4C-5071 CAD Model

Alternative Products

Description

The XG4C-5071 is a 50 position male pin header connector manufactured by Omron Electronics Inc-EMC Div.

Series: XG4
Design: Shrouded 4 Wall
Feature: Keying Slot
Loaded: All Positions
Contact Material: Brass
Contact Finish: Nickel
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Voltage Rating: 300V
Contact Finish for Mating: Gold with a thickness of 5.90μin (0.150μm)
Contact Finish for Post: Tin with a thickness of 78.7μin (2.00μm)
Current Rating: 3A
Temperature Range: -55°C to 105°C
