ON Semiconductor 2SA1745-6-TL-E PNP Transistor

The 2SA1745-6-TL-E from ON Semiconductor is a high-performance PNP transistor that serves a wide range of applications requiring efficient and reliable semiconductor solutions. This particular component is designed to meet the stringent requirements of modern electronic circuits, providing designers with a versatile device that can be used in various switching and amplification tasks.

Key Features

• Transistor Type: The 2SA1745-6-TL-E is a PNP (Positive-Negative-Positive) bipolar junction transistor (BJT), which is suitable for use in applications requiring a low voltage, high current switch or amplifier.
• Voltage Ratings: It has a collector-base voltage (VCBO) of -50V, a collector-emitter voltage (VCEO) of -50V, and an emitter-base voltage (VEBO) of -5V, making it robust for various electronic circuits.
• Current Handling: The transistor can handle a continuous collector current (IC) of up to -2A, which allows for significant current flow through the device without overheating or damage.
• Power Dissipation: With a power dissipation of 2W, the 2SA1745-6-TL-E can withstand moderate amounts of heat generated during operation, maintaining stability and performance.
• High Gain Bandwidth Product: It features a high gain bandwidth product (fT) of 100MHz, ensuring that the transistor can handle high-frequency signals efficiently.

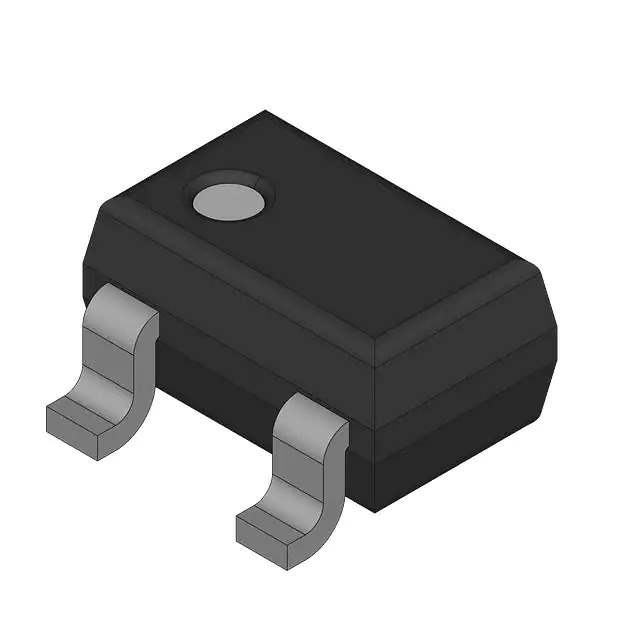

• Package: The device comes in a surface-mount package, specifically the TP-FA, which is compact and suitable for high-density PCB designs.

Applications

The 2SA1745-6-TL-E PNP transistor is suitable for a variety of applications, including but not limited to:

• Power management circuits
• Audio amplifiers
• Signal processing
• Switching regulators
• Motor control circuits

ON Semiconductor's commitment to quality ensures that the 2SA1745-6-TL-E transistor is a reliable component for both commercial and industrial applications. Its robustness, coupled with ON Semiconductor's advanced manufacturing processes, makes this transistor a preferred choice for engineers and designers looking for a dependable PNP solution.
