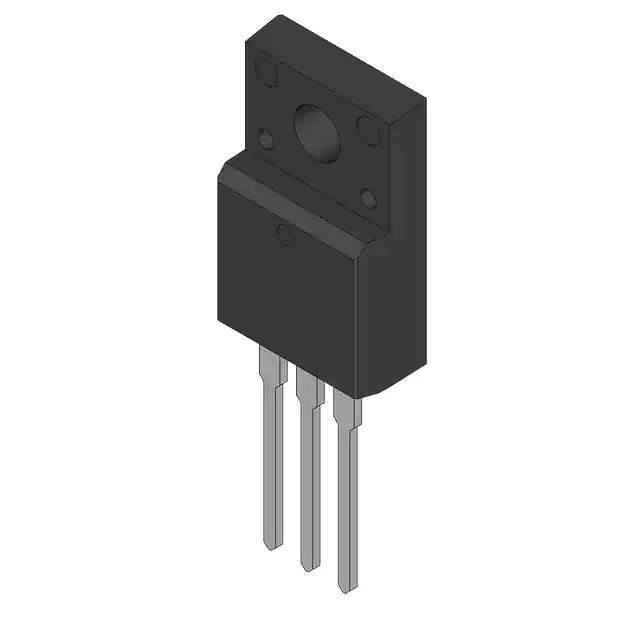

ON Semiconductor 2SC3746S NPN Transistor

The 2SC3746S is a high-quality NPN bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This transistor is specifically engineered to meet the requirements of a wide range of electronic applications, offering a perfect blend of performance, reliability, and efficiency.

Key Features

• Voltage Ratings: The 2SC3746S is characterized by its impressive voltage handling capabilities, with a collector-base voltage (VCBO) of 800V, a collector-emitter voltage (VCEO) of 400V, and an emitter-base voltage (VEBO) of 7V.
• Current Capacity: It can handle a continuous collector current (IC) of up to 7A, making it suitable for medium-power applications.
• Power Dissipation: With a power dissipation (PD) of 40W, this transistor can efficiently manage power within a circuit without overheating.
• High Switching Speed: The device features a high switching speed, which is essential for applications requiring quick transitions between on and off states.
• TO-3P Package: Encased in a TO-3P package, the 2SC3746S ensures a robust and durable structure that can withstand challenging environmental conditions.

Applications

The versatility of the 2SC3746S allows it to be utilized in various applications, including:

• Power supply units
• Switching regulators
• Motor controls
• Audio amplifiers
• Inverters
• And other general-purpose power amplification and switching tasks.

Quality and Reliability

ON Semiconductor's commitment to quality is evident in the 2SC3746S, which is built to meet stringent standards, ensuring optimal performance and longevity. Users can trust this component for its reliable operation over extended periods, even under demanding circumstances.

Environmental Compliance

The 2SC3746S is designed with environmental considerations in mind. It complies with RoHS directives, making it a suitable choice for eco-conscious manufacturers looking to create environmentally friendly products without compromising on performance.

In conclusion, the ON Semiconductor 2SC3746S NPN transistor is an essential component for designers and engineers who require a dependable and efficient solution for their power control and amplification needs. Its robust design and versatile application range make it an invaluable addition to any electronic project.
