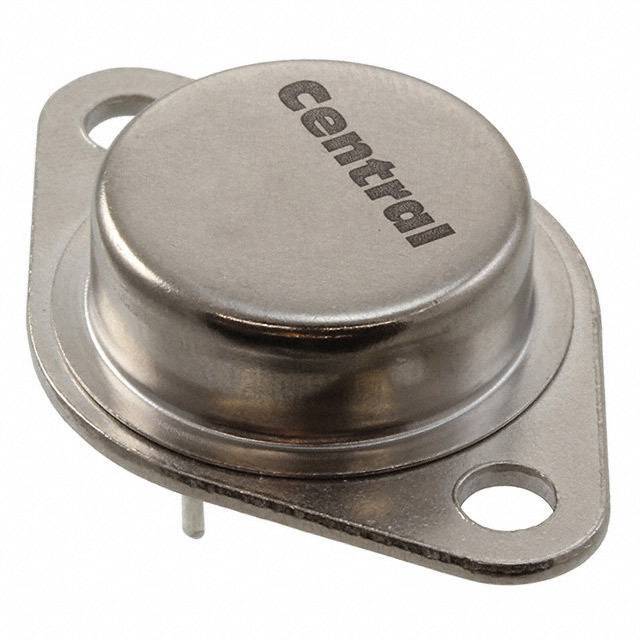

2N4399 Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

2N4399

Part No 2N4399
Manufacturer Central Semiconductor Corp
Catalog Transistors (BJT) - Single
Description TRANS PNP 60V 30A TO-3
Datasheet
2N4399 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Tube
Transistor Type PNP
Current - Collector (Ic) (Maximum) 30A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) @ Ib, Ic 4V @ 6A, 30A
Current - Collector Cutoff (Maximum) 5mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 15 @ 15A, 2V
Power - Max 5W
Frequency - Transition 4MHz
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Style Through Hole
Package TO-204AA, TO-3
Manufacturer Package TO-3
Win Source Part Number 762233-2N4399
Popularity Medium
Supply and Demand Status Limited
Family Name 2N4399
Introduction Date December 22, 2004
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2N4399 CAD Model

Description

The Central Semiconductor Corp 2N4399 is a PNP transistor designed for through-hole mounting.

  • Power: 5W
  • Current - Collector (Ic) (Maximum): 30A
  • Voltage - Collector Emitter Breakdown (Maximum): 60V
  • Frequency - Transition: 4MHz
  • DC Current Gain (hFE) (Minimum): 15 @ 15A, 2V
  • Operating Temperature Range: -65°C to 200°C (TJ)
  • Package: Tube
  • Supply Status: Limited
  • Demand Status: Limited
  • MSL Level: 1 (Unlimited)
  • Estimated EOL Date: 2026
