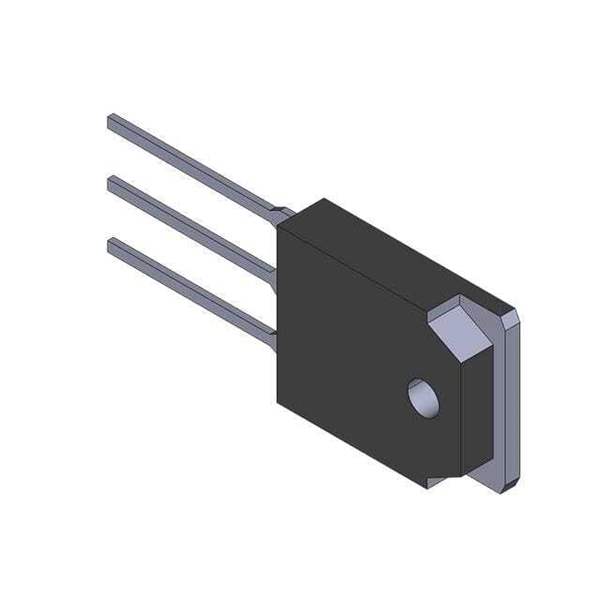

The 2SD1229 is a robust bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This NPN transistor is engineered for high-speed switching applications and is widely used in various electronic circuits for its reliability and performance.

Key Features

• High-Speed Switching: The 2SD1229 is optimized for quick transitions, making it an ideal choice for circuits requiring high-speed operation.
• Low Saturation Voltage: It offers low V<sub>CE(sat) which reduces power loss and improves efficiency, especially in saturation-driven applications.
• High Current Capability: With a collector current rating of up to several amperes, this transistor can handle significant current loads, suitable for power amplification and control.
• Complementary PNP Type: ON Semiconductor provides a complementary PNP type transistor, allowing for easy implementation in push-pull amplifier configurations.

Applications

The 2SD1229 transistor finds its use in a variety of applications, including:

• Power management modules
• DC-DC converters
• Motor controllers
• Audio amplifiers
• Switching regulators
• General purpose switching

Product Specifications

Parameter Value Collector-Emitter Voltage (V<sub>CEO) Up to 80V Collector Current (I<sub>C) Several Amperes Power Dissipation (P<sub>D) Check Datasheet Operating Temperature Range -55°C to +150°C

Quality and Reliability

ON Semiconductor ensures that the 2SD1229 transistor meets stringent quality standards, providing reliable performance even under harsh conditions. For detailed information on quality, environmental compliance, and lifecycle status, please refer to the official ON Semiconductor documentation.

Note: It is essential to consult the datasheet of the 2SD1229 for precise electrical characteristics and installation guidelines. The information provided here is an overview and does not replace professional technical advice.
