ON Semiconductor 74LCX32BQX: Low Voltage Quad 2-Input OR Gate

The 74LCX32BQX from ON Semiconductor is a high-performance, low-voltage Quad 2-Input OR Gate IC designed for use in 3.3V LVTTL/LVCMOS systems. It is part of the LCX family, which is renowned for its low power consumption and high drive capability, making it an ideal choice for interfacing with high-speed systems or for buffering and driving heavy loads.

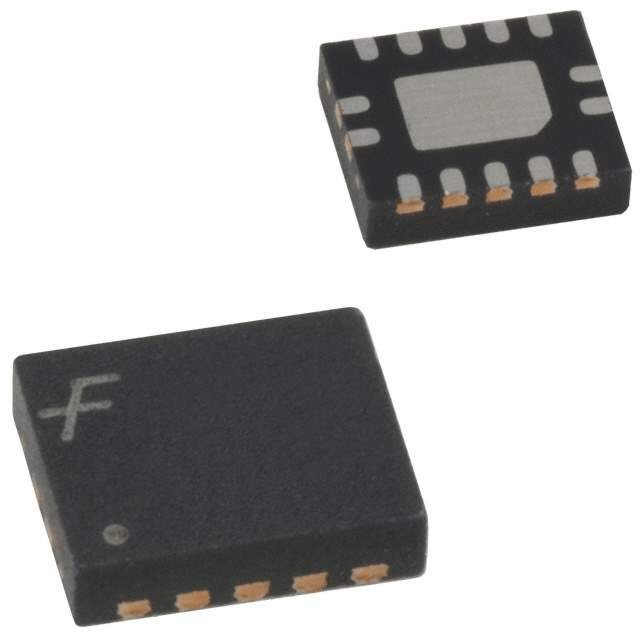

This integrated circuit features a 2-input OR gate configuration, with four independent gates packaged in a compact and surface-mountable 14-pin DFN package. The device is optimized for 3.3V VCC operation but can also handle a wide voltage range from 2V to 3.6V, providing design flexibility for mixed-voltage system integration.

The 74LCX32BQX is characterized by its 5V tolerant inputs, which allow the use of this device in a mixed-voltage environment where the interface with 5V signals is required. This feature is particularly useful when upgrading systems from 5V to 3.3V without needing to change the input logic level, thus simplifying the design process and saving on additional level shifting components.

ON Semiconductor has engineered the 74LCX32BQX with an emphasis on speed and power efficiency. The device boasts a fast propagation delay while maintaining low static and dynamic power consumption. Its power-off high impedance inputs and outputs ensure that the IC does not load the system when powered down, further conserving energy.

The IC also incorporates advanced features such as noise/EMI reduction circuitry which minimizes signal overshoot and undershoot, thereby enhancing signal integrity and reducing the risk of false switching. Additionally, the 74LCX32BQX is fully specified for partial power-down applications using IOFF, which allows the output to be disabled and maintain high impedance, irrespective of the operating condition.

For applications where space is at a premium, the small form factor of the DFN package makes the 74LCX32BQX a suitable option for portable electronics, computing devices, networking hardware, and other space-constrained applications requiring high-speed logic operations.

Overall, the ON Semiconductor 74LCX32BQX offers a blend of high-speed performance, low power consumption, and robust tolerance to higher voltage levels, making it a versatile and efficient solution for a wide range of digital logic applications.
