ON Semiconductor 74LVTH374MTC Octal D-Type Flip-Flop

The 74LVTH374MTC from ON Semiconductor is a high-performance, non-inverting octal D-type flip-flop with 3-state outputs. It is designed to have the capability to drive heavily loaded outputs with the lowest propagation delay time. This product is part of the 74LVTH family, which is characterized by low voltage and high tolerance to tolerate the 5V input in a 3.3V environment.

This integrated circuit (IC) features eight edge-triggered D-type flip-flops with individual D inputs and Q outputs. The common clock (CP) and master reset (MR) inputs control all flip-flops. The flip-flops will store the state of their individual D-inputs that meet the setup and hold time requirements on the LOW-to-HIGH clock (CP) transition. A LOW on MR will reset all flip-flops, resulting in a LOW on all Q outputs, regardless of the clock input.

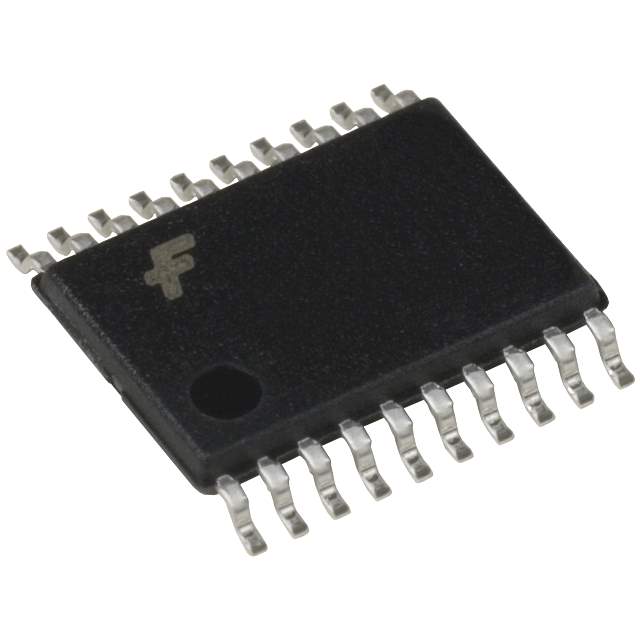

The 74LVTH374MTC is housed in a compact 20-pin TSSOP (Thin Shrink Small Outline Package) that saves space on printed circuit boards. The device operates over a broad voltage range of 2.7V to 3.6V and features a -40°C to +85°C operating temperature range, making it suitable for industrial applications.

Key features of the 74LVTH374MTC include:

• 3.3V LVTTL (Low Voltage TTL) logic levels, 5V tolerant inputs
• High drive capability: ±24mA at the outputs
• Low propagation delay: typically 2.5ns
• Power-down high impedance inputs and outputs
• Support for live insertion and withdrawal (partial power-down)
• Bus hold on data inputs to retain last inputs' states when not driven
• Non-inverting outputs

The 74LVTH374MTC is ideal for interfacing with high-speed microprocessors and can be used in a wide range of applications, including servers, networking, telecommunications, and data systems. Its robust design and advanced technology ensure reliable operation and compatibility with future system upgrades.

For designers looking for a high-speed, low-power octal flip-flop with the flexibility to interface with 5V systems while operating at 3.3V, the 74LVTH374MTC from ON Semiconductor is an excellent choice.
