ON Semiconductor ADT7463ARQZ Temperature Sensor and System Monitor

The ADT7463ARQZ is a versatile and advanced temperature sensor and system monitor IC designed by ON Semiconductor, engineered to address the needs of complex electronic systems. This integrated circuit is capable of monitoring multiple temperature zones, fan speeds, and voltage levels within a computer motherboard, server, or other sophisticated electronic systems.

Key Features:

• Multiple Temperature Sensors: The device comes with three onboard temperature sensors for monitoring the temperature of the ambient environment, the internal temperature, and a remote thermal diode.
• Programmable Fan Speed Control: It includes sophisticated fan control features that can manage up to three fans. The fan speed can be automatically adjusted based on temperature readings, ensuring optimal cooling and noise reduction.
• Voltage Monitoring: The ADT7463ARQZ offers voltage monitoring capabilities for up to five power supply voltages, enhancing system stability and reliability.
• I²C Compatible Interface: An I²C serial bus interface allows for easy communication and configuration by the host system.
• Software Programmable: All settings can be programmed via software, allowing for customization and flexibility to meet specific system requirements.
• Flexible Power Supply: The device operates over a wide supply voltage range from 3.0V to 3.6V, making it suitable for a variety of applications.
• Thermal Alarm: An integrated thermal alarm warns the system of temperature-related issues, allowing for preventive measures to avoid overheating.

Applications:

The ADT7463ARQZ is ideal for use in a range of applications, including:

• Desktop and Notebook Computers
• Servers and Workstations
• Embedded Systems
• Telecommunications Equipment
• Industrial PCs

Package and Quality:

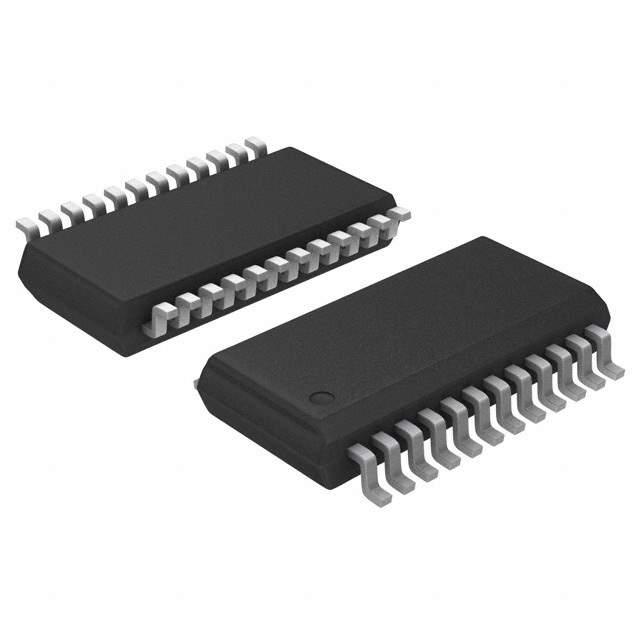

Encased in a 24-lead QSOP package, the ADT7463ARQZ is designed to meet the space constraints of modern electronic systems while delivering robust performance. ON Semiconductor is committed to high-quality standards, ensuring that this product meets the stringent demands of the industry.
