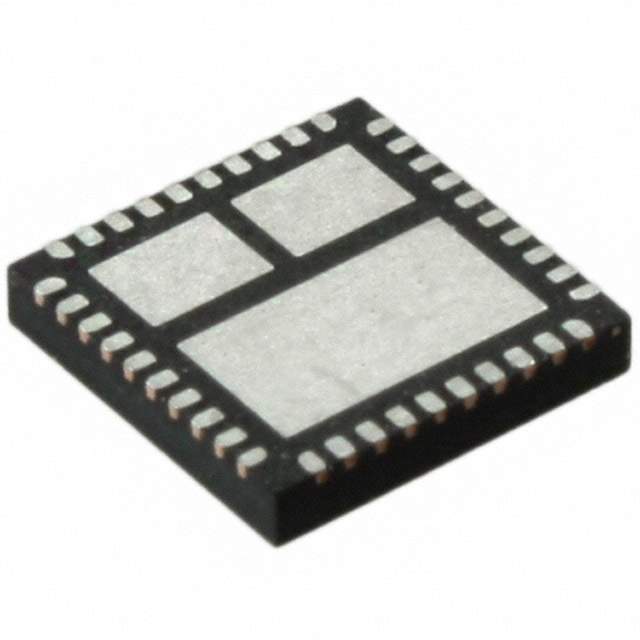

ON Semiconductor FDMF6824C Power Stage Module

The ON Semiconductor FDMF6824C is a highly integrated power stage module designed for high-efficiency, high-density power conversion applications. This compact module combines a driver IC, two power MOSFETs, and a Schottky diode into a single package, enabling designers to achieve robust and efficient power management solutions with a reduced footprint on the PCB.

Key Features:

• High-Performance Power MOSFETs: The FDMF6824C features two low R<sub>DS(on) PowerTrench<sup>® MOSFETs that ensure minimal power loss and heat generation, enhancing the overall efficiency of the system.
• Integrated Driver: The built-in driver is optimized to match the switching characteristics of the MOSFETs, providing accurate and fast switching, which is essential for reducing switching losses and improving performance.
• Monolithic Integration: The monolithic integration of the driver and MOSFETs in a single package simplifies the design and reduces parasitic inductance, which is beneficial for high-frequency switching applications.
• Optimized for Synchronous Buck Converters: The FDMF6824C is particularly suitable for synchronous buck converter topologies, commonly used in CPU and GPU power supplies, as well as in telecom and datacom power systems.
• High Current Capability: With its ability to handle high current levels, this power stage module is ideal for applications requiring high power density and efficiency.
• Compact PQFN Package: The 8x8 mm PQFN (Power Quad Flat No-Lead) package allows for a smaller PCB layout, making it an excellent choice for space-constrained applications.
• Integrated Schottky Diode: The inclusion of a Schottky diode provides a fast-recovery rectifying function, which further enhances the efficiency during the freewheeling phase of operation.

Applications:

• Desktop and Notebook Computers
• Graphics Cards (GPUs)
• Point of Load (POL) Modules
• Telecommunication and Networking Systems
• Server and Storage Systems

Overall, the ON Semiconductor FDMF6824C power stage module is a versatile and reliable solution for modern power conversion challenges. Its high level of integration, efficiency, and thermal performance make it a top choice for engineers looking to optimize their power supply designs.
