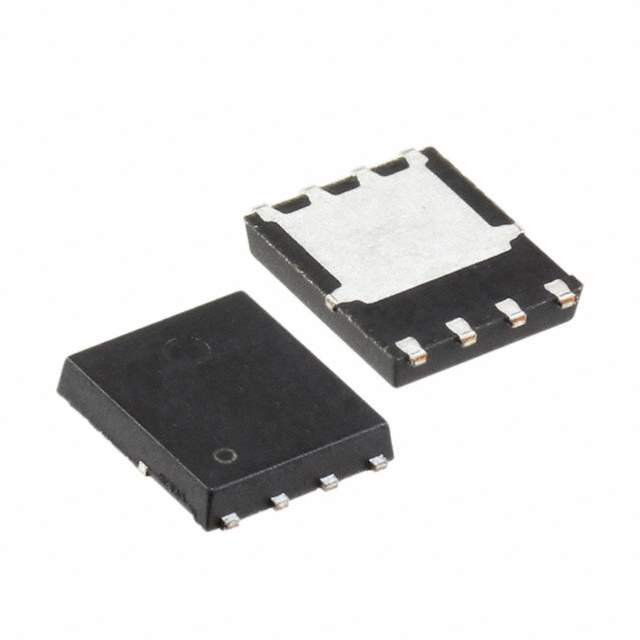

FDWS86068-F085

Part No FDWS86068-F085
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 80A 8DFN / N-Channel 100 V 80A (Tc) 214W (Ta) Surface Mount 8-DFN (5.1x6.3)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer onsemi
Packaging Reel - TR
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 6.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 2220 pF @ 50 V
Power Dissipation (Max) 214W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Supplier Device Package 8-DFN (5.1x6.3)
Case / Package 8-PowerTDFN
Base Product Number FDWS86068
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number FDWS86068-F085OSDKR,FDWS86068-F085-ND,FDWS86068-F085OSTR,FDWS86068-F085OSCT
Standard Package 3,000
Win Source Part Number 1324434-FDWS86068-F085

Description

The FDWS86068-F085 is a state-of-the-art Power MOSFET brought to you by ON Semiconductor, a leader in energy-efficient innovations. This high-performance component is designed to address the demanding requirements of modern power supply and conversion systems. With its advanced technology, the FDWS86068-F085 offers superior power efficiency and reliability, making it an ideal choice for a wide range of applications including computing, consumer electronics, and industrial designs.

Key Features

  • Low RDS(on): The device features a very low on-resistance, which translates to reduced conduction losses and improved overall efficiency in power conversion circuits.
  • High Current Capability: The FDWS86068-F085 is capable of handling high current loads, ensuring robust performance even under strenuous conditions.
  • PowerTrench® Technology: This MOSFET incorporates ON Semiconductor's proprietary PowerTrench technology, which optimizes the device for fast switching and low gate charge, leading to reduced switching losses.
  • Single Pulse Avalanche Energy Rated: The device is designed to withstand high energy pulses in avalanche and commutation modes, providing enhanced ruggedness and reliability.

Applications

The versatility of the FDWS86068-F085 allows it to be used across a multitude of applications. It is particularly suited for synchronous rectification in DC/DC converters, Point of Load (POL) modules, and high-density power supplies. Its high efficiency and thermal performance also make it a preferred choice for motor drives, battery management systems, and renewable energy inverters.

Environmental and Quality Standards

ON Semiconductor is committed to environmental stewardship and quality. The FDWS86068-F085 complies with RoHS and Halogen-Free standards, ensuring that it meets global environmental regulations. The product is manufactured in ISO/TS-certified facilities, reflecting ON Semiconductor's dedication to the highest quality standards and reliability in the industry.
