ON Semiconductor LM2575D2T-15R4: Simple Switcher 1A Step-Down Voltage Regulator

The LM2575D2T-15R4 from ON Semiconductor is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator capable of driving a 1A load with excellent line and load regulation. This voltage regulator is particularly suitable for simple, high-efficiency power supplies, offering a substantial advantage over traditional linear regulators due to its integrated features and reduced external component count.

Key Features:

• Output Voltage: This device provides a fixed output voltage of 15V, which is suitable for a wide range of applications that require a stable voltage supply.
• Output Current: The LM2575D2T-15R4 can deliver a load current of up to 1A, making it ideal for moderate power needs.
• High Efficiency: The switcher operates at high efficiency, which can be up to 77%, reducing power losses and improving system reliability.
• Thermal Shutdown and Current Limit Protection: Built-in protection features ensure the longevity and reliability of the regulator by protecting it from excessive current and overheating.
• Wide Input Voltage Range: It can operate with an input voltage range from 4V to 40V, accommodating a variety of power sources and conditions.
• 52 kHz Fixed Frequency Internal Oscillator: The internal oscillator's fixed frequency simplifies the design of the external components required for the regulator circuit.

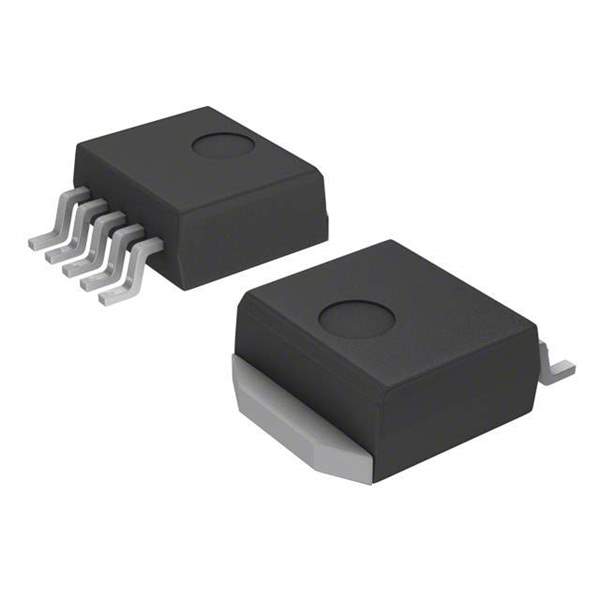

• TO-263 Package: The device comes in a TO-263 surface-mount package, which is suitable for automated assembly processes and helps save space on the PCB.

Applications:

The LM2575D2T-15R4 is versatile and can be used in a multitude of applications such as:

• Simple high-efficiency step-down regulators
• Positive to negative converter (Buck-Boost)
• Pre-regulator for linear regulators
• On-card switching regulators
• Adjustable power supplies

In conclusion, the ON Semiconductor LM2575D2T-15R4 is a robust and efficient solution for applications requiring a fixed 15V output at currents up to 1A. Its ease of use, combined with its protection features and wide input voltage range, make it an excellent choice for both new designs and as a drop-in replacement for less efficient linear regulators in existing applications.
