ON Semiconductor LM2576TV-5.0 Voltage Regulator

The LM2576TV-5.0 from ON Semiconductor is a monolithic integrated circuit designed for use as a simple, easy-to-use, 3A step-down (buck) voltage regulator. This regulator provides all the active functions necessary for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. The LM2576 series are highly efficient due to the use of a simple external inductor, and they are available in a fixed output voltage of 5V, making them suitable for a wide range of applications.

The device has a wide input voltage range from 4V to 40V, which makes it suitable for applications with input voltage sources ranging from 5V to 40V. This flexibility is particularly useful in automotive and industrial applications where input voltages can vary significantly. The LM2576TV-5.0 can produce a fixed output voltage of 5V with a tolerance of ±4% over line and load conditions.

One of the key features of the LM2576TV-5 is its high efficiency, which can be up to 92%, depending on the input and output voltages. This efficiency is achieved through the use of a switch-mode design, which reduces power losses compared to linear voltage regulators. Additionally, the device offers thermal shutdown and current limit protection, enhancing the safety and reliability of the applications in which it is used.

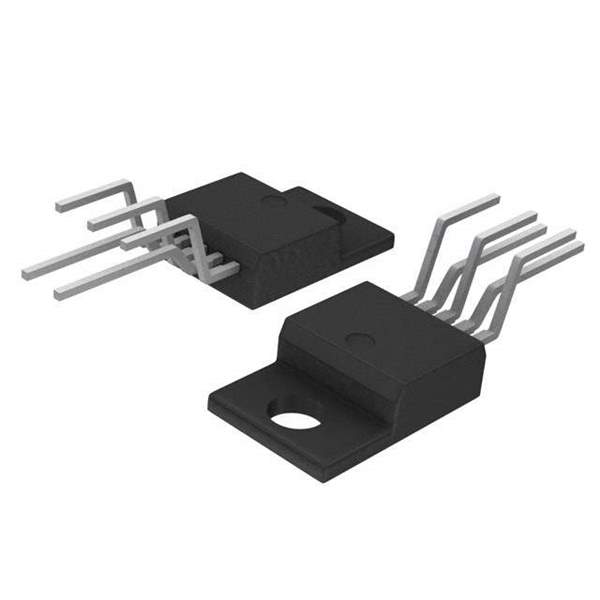

The regulator comes in a TO-220 package, which is a through-hole package suitable for prototyping, educational projects, and production runs. The simple external components required for the LM2576TV-5.0 include an inductor, diode, and a few capacitors, which makes it easy to integrate into a variety of power supply designs.

In summary, the ON Semiconductor LM2576TV-5.0 is a versatile, reliable, and efficient solution for applications requiring a regulated 5V output. Its ease of use and robust protection features make it an excellent choice for both novice and experienced electronics designers looking to implement an effective power management solution.
