The MJH11019 from ON Semiconductor is a high-power NPN silicon transistor designed to cater to a wide range of high-voltage, high-speed power switching applications. This device is especially well-suited for use in inductive switching circuits where fall time is critical. It is commonly employed in power amplifiers, converters, and inverters, as well as other high-power switching circuits.

Key Features

• High Collector-Emitter Breakdown Voltage: With a V<sub>CEO of 250V, the MJH11019 can handle high voltage applications, making it ideal for use in power supply and regulation systems.
• High Current Rating: The transistor can support a continuous collector current (I<sub>C) of up to 15A, allowing it to drive large loads.
• Fast Switching Speeds: Its excellent switching characteristics ensure minimal switching losses, which is crucial for efficiency in power conversion applications.
• High Power Dissipation: With a power dissipation (P<sub>D) of 200W, the MJH11019 can handle significant amounts of power without overheating.

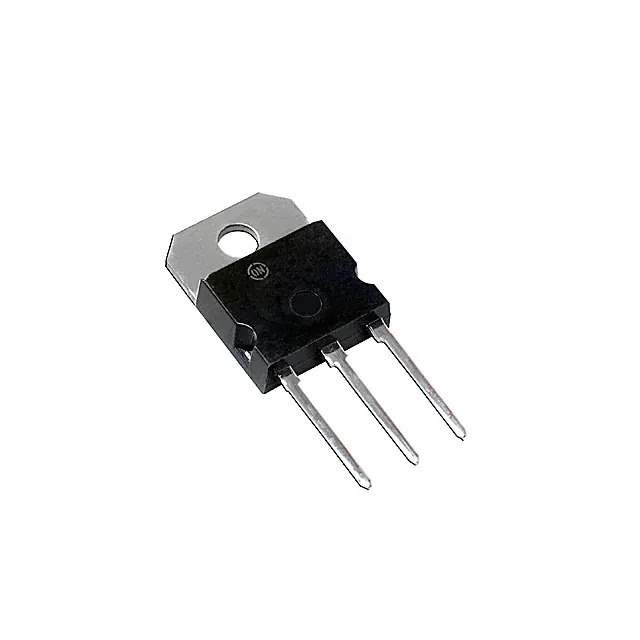

• Robust Design: The device is encapsulated in a TO-247 package, which offers high thermal performance and durability under tough operating conditions.

Applications

The MJH11019's robustness and reliability make it an excellent choice for a variety of applications, including:

• Switching regulators
• Motor control
• Power inverters
• Audio amplifiers
• High fidelity amplifiers
• Pulse width modulated (PWM) systems

Technical Specifications

Overall, the MJH11019 is a reliable and efficient solution for designers looking to improve their power management systems with a transistor that offers high voltage and current handling capabilities alongside fast switching speeds.
