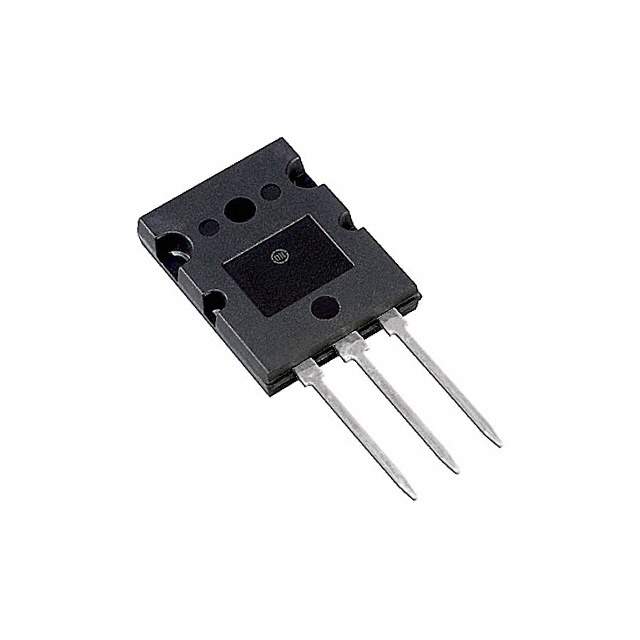

The MJL4302A, manufactured by ON Semiconductor, is a high-fidelity audio output power transistor designed to deliver premium sound quality for demanding audio applications. This power transistor is specifically engineered to enhance the performance of high-power audio amplifiers, ensuring that they produce clear, undistorted sound even at high volumes.

Key Features

• High-Fidelity Audio: The MJL4302A is tailored for audio applications where fidelity is paramount, ensuring minimal signal distortion and superior sound reproduction.
• High Power Handling: With its ability to handle significant power levels, this transistor is ideal for use in high-power audio amplifiers, providing reliable performance under strenuous conditions.
• Complementary NPN Type: The MJL4302A is a PNP transistor that is complementary to the MJL4281A NPN type, allowing for a well-balanced output stage in push-pull amplifier configurations.
• Robust Construction: Featuring ON Semiconductor's advanced build quality, the MJL4302A offers excellent reliability and a long operational lifespan, even in demanding environments.

Specifications

Parameter Value Collector-Emitter Voltage (V<sub>CEO) 350 V Collector Current (I<sub>C) 15 A Power Dissipation (P<sub>D) 200 W Transition Frequency (f<sub>T) 4 MHz Operating Junction Temperature (T<sub>J) -65 to +150 °C

Applications

The MJL4302A is particularly suitable for high-end audio applications, such as professional audio amplifiers, home theater systems, and high-quality audio equipment. Its robust design and excellent sound reproduction capabilities make it a preferred choice for audiophiles and professionals seeking the best in audio performance.

Whether you're designing a new audio system or upgrading an existing one, the MJL4302A from ON Semiconductor is a reliable and high-performing component that will take your audio experience to the next level.
