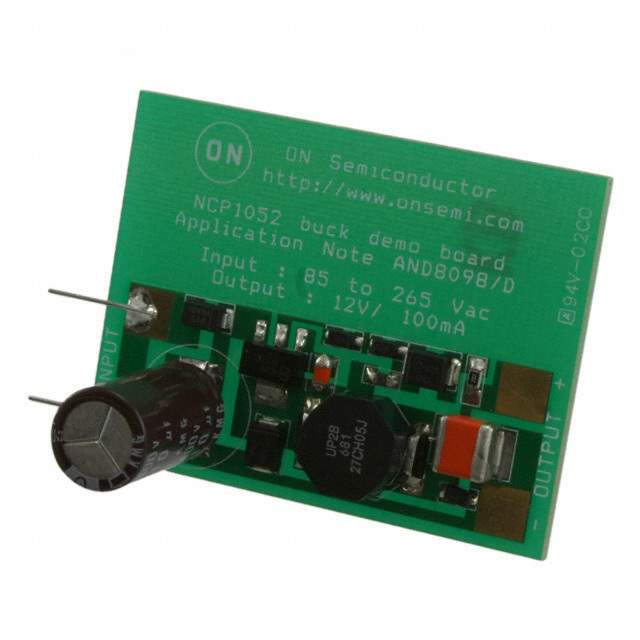

ON Semiconductor NCP1052GEVB Evaluation Board

The NCP1052GEVB from ON Semiconductor is a high-performance evaluation board designed for engineers and developers to assess the capabilities of the NCP1052 series monolithic high voltage regulators. This evaluation board serves as a robust platform to prototype, test, and optimize power supply solutions for a wide range of applications, including but not limited to industrial controls, consumer electronics, and power management systems.

At the heart of the NCP1052GEVB is the NCP1052 switcher IC, which integrates a fixed-frequency current mode controller with a 700 V MOSFET. The IC offers numerous features such as under-voltage lockout, over-temperature protection, and frequency jittering for lower EMI, making it suitable for compact and efficient power supplies.

The evaluation board showcases the versatility of the NCP1052 chip in a flyback converter topology, providing an excellent example of how the IC can be used to create an isolated power supply. The board is pre-configured to deliver a well-regulated output voltage, but it can be easily modified to cater to different output requirements, demonstrating the flexibility of the NCP1052 series.

Furthermore, the NCP1052GEVB is equipped with test points and jumper options that allow for thorough evaluation of the IC's performance. Engineers can monitor parameters such as input and output voltages, switch node waveforms, and feedback signals, enabling them to fine-tune their designs for optimal performance.

The evaluation board's user-friendly layout is accompanied by comprehensive documentation, including schematic diagrams, bill of materials, and application notes provided by ON Semiconductor. This valuable resource ensures that users can rapidly understand and leverage the full potential of the NCP1052GEVB for their specific power supply needs.

In summary, the NCP1052GEVB Evaluation Board is an indispensable tool for any power supply designer looking to leverage the benefits of the NCP1052 series. With its high integration, ease of use, and extensive support materials, this evaluation board accelerates the development process and helps bring efficient power solutions to market faster.
