ON Semiconductor NCP114AMX075TCG Low Dropout Regulator

The NCP114AMX075TCG is a high-performance, low dropout linear voltage regulator from ON Semiconductor, designed to deliver a stable and reliable power supply in a vast array of electronic applications. This component is particularly suitable for portable devices due to its compact size and high energy efficiency.

Key Features

• Output Voltage: This regulator provides a fixed output voltage of 0.75V, which is ideal for low-voltage operations in modern digital circuits.
• High Accuracy: With an output voltage accuracy of ±1%, the NCP114AMX075TCG ensures precise voltage regulation for sensitive electronics.
• Low Dropout: The low dropout voltage of just 135 mV at 300 mA load enhances efficiency and allows operation close to the input voltage level, maximizing battery life in portable applications.
• High PSRR: A high Power Supply Rejection Ratio (PSRR) of 75 dB at 1 kHz minimizes the effect of supply voltage variations on the output, providing a more stable voltage under different conditions.
• Thermal Protection: Integrated thermal shutdown protection safeguards the device and the system from damage due to excessive temperatures.
• Current Limit: The built-in current limit feature prevents damage from overcurrent conditions, enhancing the durability of the regulator and the overall system.

Applications

The NCP114AMX075TCG is versatile and can be used in a range of applications, including:

• Portable and battery-powered devices
• Wireless LAN, Bluetooth, and GPS modules
• Smartphones and tablets
• Cameras and audio devices
• Microcontroller power supplies

Package and Reliability

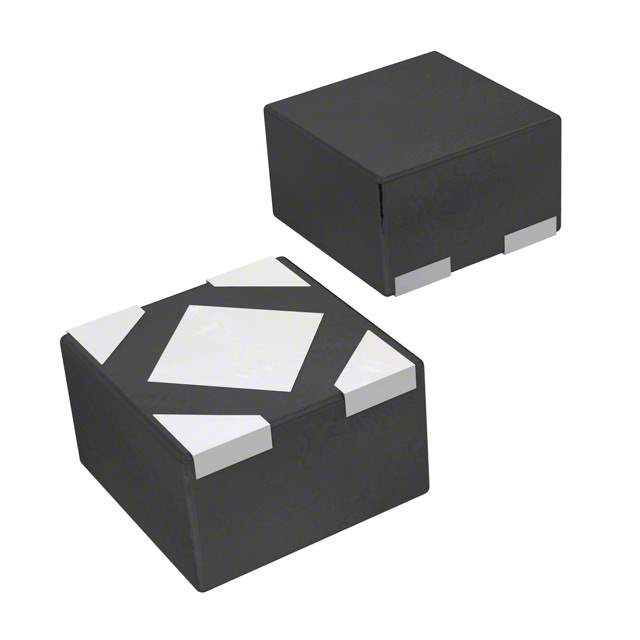

Encased in an ultra-small XDFN-4 package, the NCP114AMX075TCG occupies minimal space on a printed circuit board, making it an excellent choice for space-constrained applications. Its robust design ensures reliable performance even in harsh conditions, making it a preferred choice for designers looking to enhance system stability and longevity.

With its combination of high accuracy, low dropout, and protective features, the NCP114AMX075TCG from ON Semiconductor is an exceptional choice for anyone in need of a stable and efficient power supply solution.
