ON Semiconductor NCP114BMX330TCG Low Dropout Voltage Regulator

The NCP114BMX330TCG from ON Semiconductor is a high-performance, low dropout voltage regulator designed for applications requiring a regulated and stable voltage supply. This component is particularly well-suited for portable and battery-powered devices due to its low power consumption and small footprint.

Key Features

• Output Voltage: This regulator provides a fixed output voltage of 3.3V, which is ideal for powering a wide range of standard digital ICs and microcontrollers.
• High Accuracy: The output voltage accuracy is ±1%, ensuring reliable and consistent performance for sensitive electronic circuits.
• Low Dropout: With a very low dropout voltage of typically 85 mV at 300 mA load, it maintains regulation even when the supply voltage is very close to the output voltage, maximizing battery life.
• High PSRR: The device features a high Power Supply Rejection Ratio (PSRR) of 75 dB at 1 kHz, which reduces the output noise and ripple when there are fluctuations in the input voltage, making it suitable for noise-sensitive applications.
• Current Limiting: It incorporates current limiting and thermal shutdown features to protect against overcurrent and overheating conditions.
• Low Quiescent Current: The NCP114BMX330TCG is optimized for low quiescent current, drawing only 50 µA, which contributes to extended battery life in portable applications.

Applications

The NCP114BMX330TCG is versatile and can be used in a broad range of applications, including:

• Portable and battery-powered devices
• Wireless and RF systems
• Microcontroller power supplies
• Point-of-load regulation on mixed-signal boards
• Handheld consumer electronics

Package and Reliability

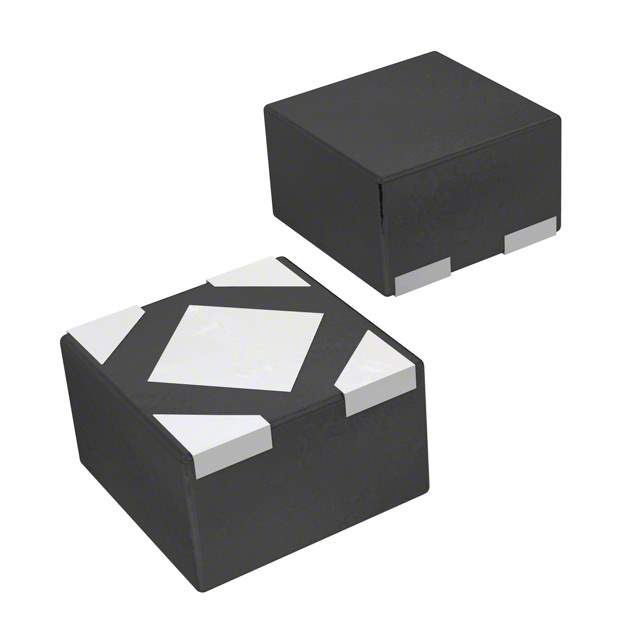

This voltage regulator comes in a compact, space-saving 4-pin XDFN package, which is RoHS compliant and halogen-free, ensuring environmental sustainability. The NCP114BMX330TCG is designed for reliability, with built-in protection features that safeguard the device and the system it powers under adverse conditions.

With its combination of high accuracy, low dropout, and robust protection features, the NCP114BMX330TCG from ON Semiconductor is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
