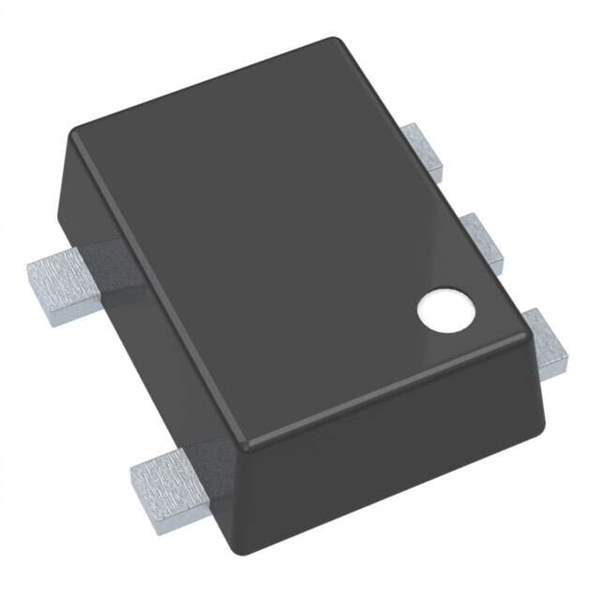

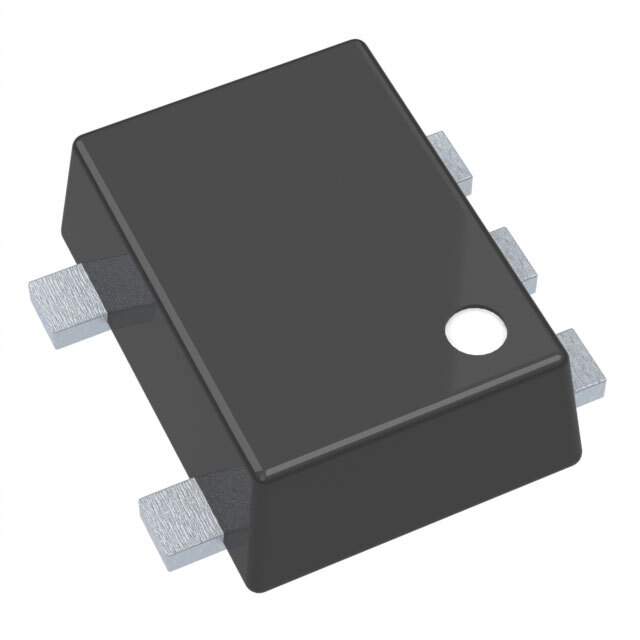

The NL17SZ02P5T5G is a high-performance, two-input NOR Gate integrated circuit from ON Semiconductor, a leading force in the semiconductor industry. This device is designed using advanced silicon gate CMOS technology to provide the perfect balance between power and speed. Its small footprint and low power consumption make it an ideal choice for a wide range of applications, from portable electronics to complex computing systems.

Key Features

• High-Speed Operation: The NL17SZ02P5T5G is capable of operating at high speeds, with a typical propagation delay time as low as 2.6ns, ensuring swift logical operations for time-sensitive tasks.
• Power Efficiency: With a low static power consumption of 20µA and dynamic power consumption of 1µA/MHz, it is a highly energy-efficient component, reducing the overall power requirements of electronic systems.
• Operating Voltage Range: It supports a wide operating voltage range from 1.65V to 5.5V, accommodating various logic level requirements and ensuring compatibility with both TTL and CMOS logic families.
• Output Drive Capability: The device can drive up to 4.0mA at 5V, allowing it to interface with other components in a circuit without the need for additional buffer stages.
• Compact Design: Housed in a space-saving SC-70-5 package, the NL17SZ02P5T5G is optimized for applications where board space is at a premium.
• Temperature Tolerance: It operates over a broad temperature range from -55°C to +125°C, making it suitable for use in harsh environmental conditions.

Applications

The versatility of the NL17SZ02P5T5G allows it to be used in various applications, including but not limited to:

• Portable Devices
• Computing Devices
• Data Processing
• Power Management Systems
• Communication Equipment
• Alarm Systems

Overall, the ON Semiconductor NL17SZ02P5T5G NOR Gate is a reliable and efficient solution for designers looking to implement logical operations within their electronic circuits. Its robust feature set ensures that it can meet the requirements of even the most demanding applications.
