The NLAS3799BMUR2G from ON Semiconductor is a high-performance, dual single-pole double-throw (SPDT) analog switch designed to deliver efficient and precise switching capabilities for a wide range of applications. This advanced switch is part of ON Semiconductor's portfolio of analog ICs, which are known for their reliability and performance in complex electronic systems.

Key Features

• Low Voltage Operation: The device operates at a supply voltage range from 1.65V to 4.5V, making it suitable for battery-powered and portable devices.
• High Bandwidth: It offers a wide bandwidth, which ensures minimal signal distortion and supports high-frequency signal switching.
• Low On-Resistance: The switch features a low on-resistance (RON) that typically ranges from 4.5 ohms to 5.5 ohms, providing efficient signal transmission with minimal loss.
• ESD Protection: Equipped with robust electrostatic discharge (ESD) protection, the NLAS3799BMUR2G is designed to withstand ESD events, enhancing the durability of the end product.

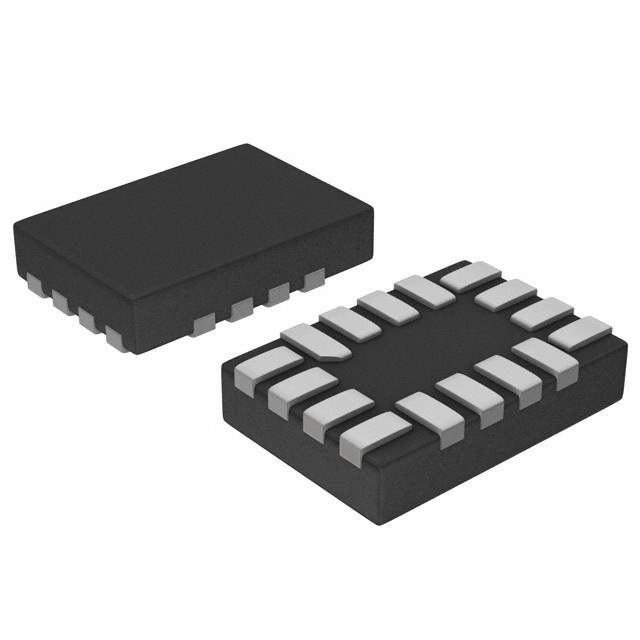

• Space-Saving: The device comes in a micro-miniature, thin dual flat no-lead package (UDFN), which is ideal for space-constrained applications.

Applications

The NLAS3799BMUR2G is versatile and can be used in various applications, including but not limited to:

• Audio and video signal routing
• Data acquisition systems
• Communication devices
• Portable electronics
• Medical equipment

Technical Specifications

The switch integrates two independently controllable SPDT switches, offering bidirectional signal flow and low crosstalk between channels. It has an operating temperature range of -40°C to +85°C, which ensures stable performance across various environmental conditions. In addition, the NLAS3799BMUR2G is RoHS compliant, demonstrating ON Semiconductor's commitment to environmental sustainability.

With its combination of low power consumption, high-speed operation, and compact form factor, the NLAS3799BMUR2G is an excellent choice for designers looking to optimize their systems for efficiency and performance.
