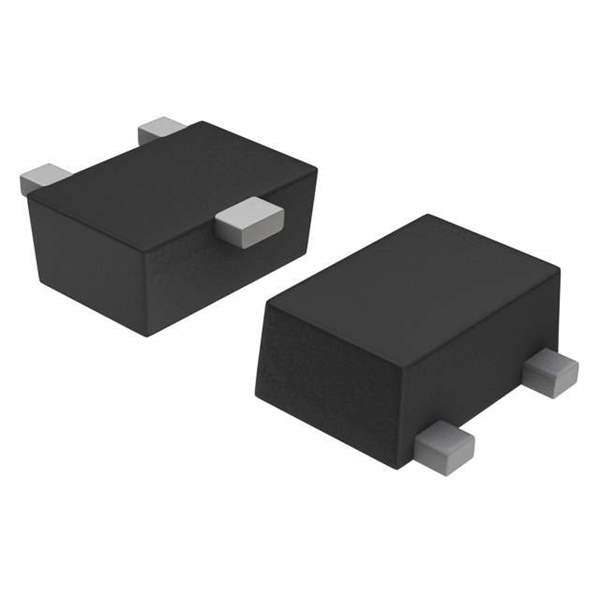

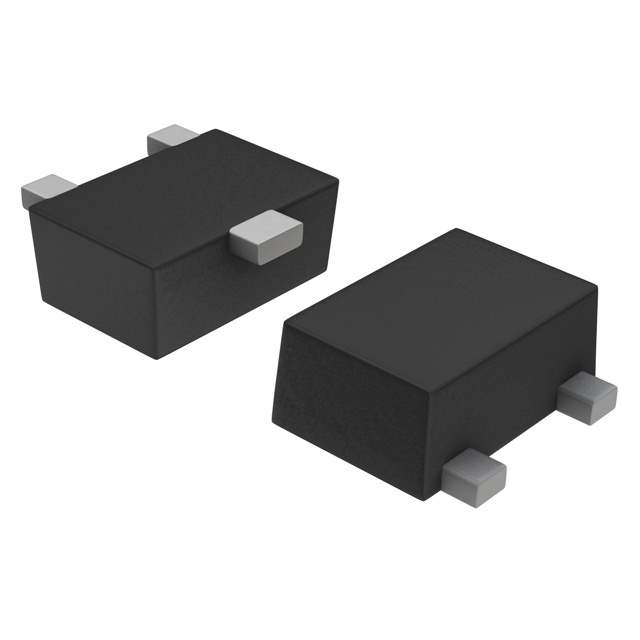

ON Semiconductor NSS12100M3T5G Overview

The ON Semiconductor NSS12100M3T5G is a high-performance, NPN bipolar junction transistor (BJT) designed for use in a wide range of electronic applications. This small-signal transistor is known for its low VCE(sat) voltage and high current gain, making it an excellent choice for energy management and efficiency in low-power circuits.

Key Features

• Low Saturation Voltage: The NSS12100M3T5G offers a low collector-emitter saturation voltage (VCE(sat)), which results in reduced power loss and improved efficiency in switching applications.
• High Current Gain: With a high current gain (hFE), this transistor can amplify weak signals effectively, making it suitable for amplification stages in audio, sensor, and other signal processing circuits.
• Complementary PNP Type Available: The NSS12100M3T5G has a complementary PNP type transistor available, providing designers with flexibility in creating push-pull, class B, and other complementary amplifier configurations.
• Pb-Free and RoHS Compliant: This product is lead-free and meets RoHS compliance, ensuring it adheres to environmental standards and is suitable for use in green products.
• SOT-23 Package: Encased in a small SOT-23 package, the NSS12100M3T5G is ideal for space-constrained applications, offering a compact footprint without compromising performance.

Applications

The NSS12100M3T5G is versatile and can be used in various applications, including:

• Load/Power Switches
• DC-DC Converters
• Signal Amplification
• Motor Control Circuits
• Energy Management Systems

Technical Specifications

The NSS12100M3T5G has several key technical specifications that make it suitable for high-performance applications:

• Collector-Emitter Voltage (VCEO): 50 V
• Collector Current (IC): 1 A
• DC Current Gain (hFE): 80 - 400
• Power Dissipation (PD): 225 mW

ON Semiconductor's commitment to quality and performance is evident in the NSS12100M3T5G transistor, making it a reliable and efficient choice for designers and engineers looking to optimize their electronic designs.
