The NTD5805NT4G is a cutting-edge power MOSFET developed by ON Semiconductor, a leader in energy-efficient innovations. This high-performance transistor is designed to meet the demanding requirements of modern electronic circuits, providing efficiency and reliability in a compact form factor.

Key Features:

• High Current Capability: The NTD5805NT4G boasts an impressive continuous drain current (ID) rating of 98 A, making it suitable for high-power applications.
• Low On-Resistance: With a typical RDS(on) value of just 2.5 mOhm at VGS = 10 V, this MOSFET ensures minimal power loss and improved overall efficiency.
• High-Speed Switching: The device is optimized for fast switching, reducing transition losses and enhancing performance in high-frequency applications.

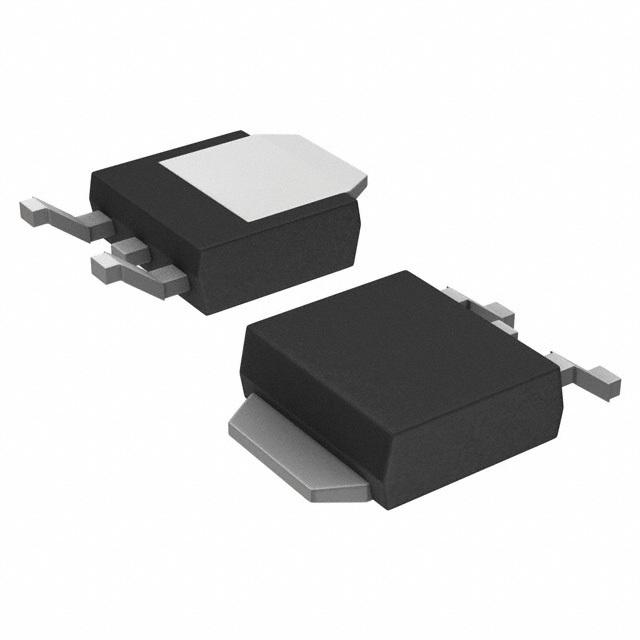

• Enhanced Thermal Performance: The NTD5805NT4G is housed in a TO-252 (DPAK) package, which offers excellent thermal transfer properties for better heat dissipation.
• Voltage Rating: It can handle a maximum drain-source voltage (VDS) of 60 V, suitable for a wide range of applications in automotive, industrial, and consumer electronics.

Applications:

The NTD5805NT4G is versatile and can be used in various applications, including:

• DC/DC converters and power supplies
• Motor drives and controllers
• Power management systems
• Automotive electronics
• LED lighting solutions

Quality and Reliability:

ON Semiconductor is committed to delivering high-quality products. The NTD5805NT4G is no exception, as it is built to meet rigorous standards for performance and reliability. With its robust construction and tested durability, this MOSFET is an ideal choice for designers looking for a reliable component that won't compromise on power or efficiency.

For detailed specifications, application notes, and additional resources, designers and engineers are encouraged to consult the official ON Semiconductor datasheets and support documentation.
