ON Semiconductor NTMT190N65S3H Silicon Carbide MOSFET

The ON Semiconductor NTMT190N65S3H is a high-performance, 650V Silicon Carbide (SiC) MOSFET that is designed to deliver exceptional efficiency, reliability, and thermal performance. This power semiconductor is an integral component for modern power supply solutions, catering to a wide range of applications including electric vehicles (EVs), solar inverters, power supplies, and other high-efficiency power conversion systems.

With a continuous drain current (I<sub>D) of 190A and a low on-resistance (R<sub>DS(on)) of 65mΩ, this SiC MOSFET ensures minimal conduction losses and supports high current densities. The NTMT190N65S3H is optimized for high-frequency operations, which makes it an excellent choice for applications that require fast switching and reduced switching losses.

The device's robustness is highlighted by its maximum junction temperature of 150°C, ensuring stable operation under extreme conditions. Furthermore, the NTMT190N65S3H boasts a fast intrinsic diode with low reverse recovery charge (Q<sub>rr), which is crucial for reducing power dissipation during the switching process and improving the overall efficiency of the power conversion system.

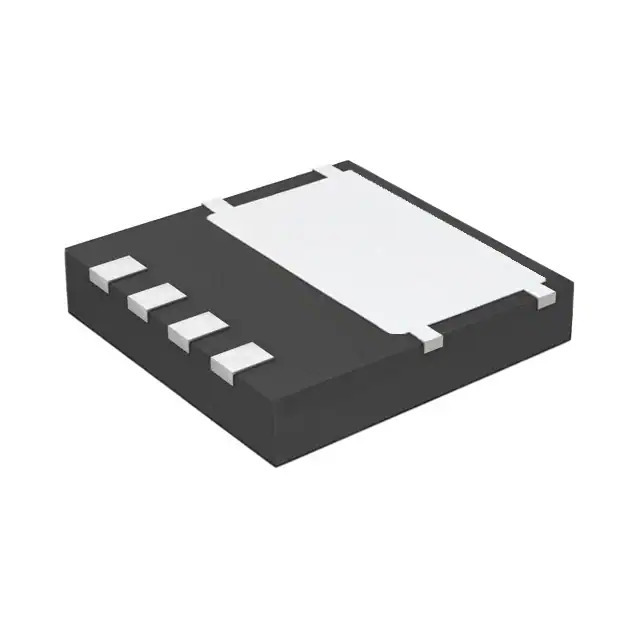

ON Semiconductor has taken special care in the design and packaging of the NTMT190N65S3H to maximize heat dissipation and improve the thermal management. The device is housed in an H-PSOF package, which is known for its excellent thermal characteristics and compact footprint. This package design not only aids in reducing the system size but also enhances the reliability and longevity of the MOSFET by maintaining lower operating temperatures.

The NTMT190N65S3H is also characterized by its ease of drivability and a wide gate threshold voltage range, making it compatible with standard gate drive voltages. This simplifies the design of the gate drive circuitry and reduces the complexity of integrating the MOSFET into various power electronic systems.

In conclusion, the ON Semiconductor NTMT190N65S3H Silicon Carbide MOSFET is a state-of-the-art power device that offers a superior combination of high efficiency, thermal performance, and reliability. Its advanced features and robust design make it an ideal choice for designers looking to optimize their power conversion systems for better performance and energy savings.
