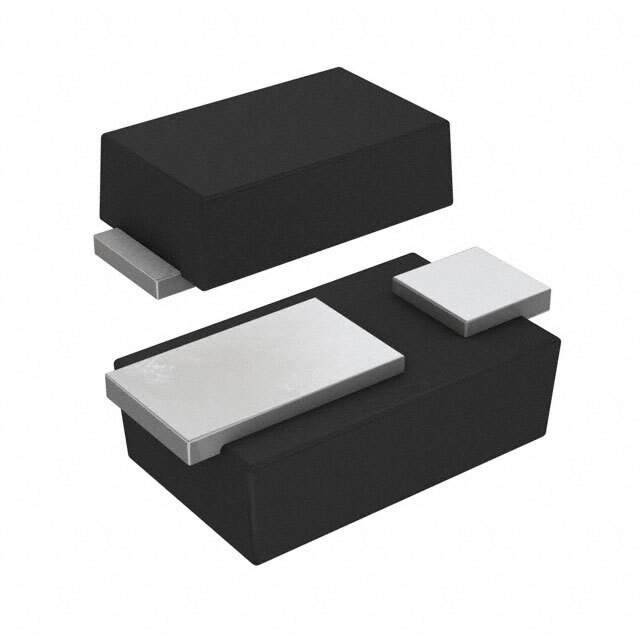

ON Semiconductor SS16HE Schottky Barrier Rectifier

The ON Semiconductor SS16HE is a high-efficiency, surface-mount Schottky Barrier Rectifier designed for applications requiring low voltage, high-frequency rectification, and free-wheeling in power supplies and other power-switching applications. This rectifier is a popular choice among engineers due to its compact size, high reliability, and superior thermal performance.

Key Features

• Forward Current: Capable of passing a forward current of 1 A, making it suitable for a range of small to medium power applications.
• Peak Reverse Voltage: With a peak repetitive reverse voltage of 60 V, the SS16HE can be safely used in circuits with moderate voltage requirements.
• Low Forward Voltage Drop: The device features a low forward voltage drop, typically 0.5 V, which enhances system efficiency by reducing power loss during operation.
• High Surge Capability: Designed to handle high surge currents without failing, providing robust performance in applications with transient overvoltages.
• High Junction Temperature: The SS16HE can operate at junction temperatures ranging from -55°C to +150°C, ensuring stability and reliability across a wide temperature range.
• Surface Mount Package: Comes in a compact SMC package that is ideal for automated assembly processes and saves board space.
• RoHS Compliant: The device is compliant with the RoHS directive, making it suitable for use in environmentally sensitive applications.

Applications

The ON Semiconductor SS16HE is versatile and can be used in various applications, including:

• DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Power supply applications
• Reverse battery protection
• Automotive applications

The combination of low power loss, high efficiency, and high surge current capability makes the SS16HE an excellent choice for designers looking to optimize their power management systems. Whether it's for consumer electronics, automotive technology, or industrial equipment, the SS16HE from ON Semiconductor provides a reliable and efficient solution for your rectification needs.
