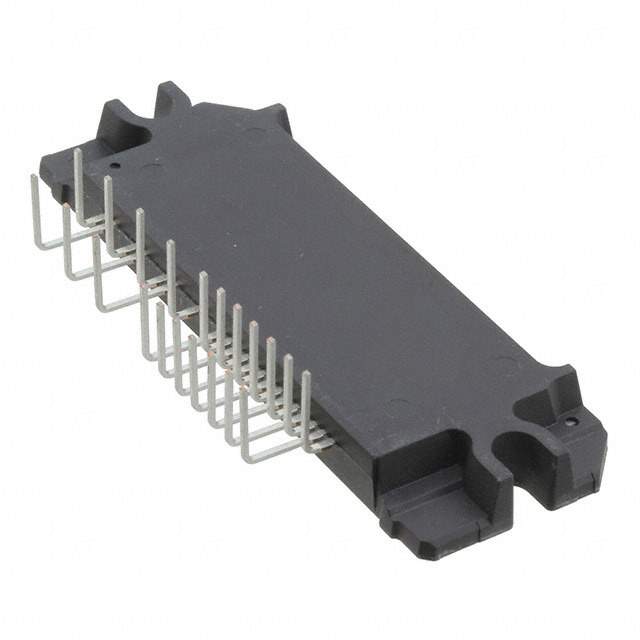

The ON Semiconductor STK534U362C-E is a cutting-edge Intelligent Power Module (IPM) that combines high-performance power electronics with advanced control technology to deliver efficient and reliable operation in a wide range of applications. This module is designed to provide a compact and integrated solution for AC motor drives, HVAC systems, and general-purpose inverters.

Key Features

• Integrated Design: The STK534U362C-E features a built-in IGBT (Insulated Gate Bipolar Transistor) inverter power stage, along with the necessary gate drive and protection circuits, all encapsulated in a single, compact package. This integration reduces system complexity and improves reliability.
• High Voltage and Current Rating: With a maximum rated voltage of 600V and a current rating of 20A, this IPM can handle robust power requirements, making it suitable for high-power applications.
• Overcurrent Protection: The module includes an overcurrent protection function that helps prevent damage to the IGBTs from unexpected current spikes or short-circuit conditions.
• Overtemperature Protection: An integrated temperature sensing function ensures the module operates within safe temperature ranges, protecting against overheating and thermal runaway.
• Optimized Gate Drive: The gate drive circuitry is optimized for low electromagnetic interference (EMI) and efficient switching, contributing to the module's overall performance and energy efficiency.

Applications

The STK534U362C-E is versatile and can be used in a variety of applications, including:

• AC motor control for industrial automation
• Residential and commercial HVAC systems
• Renewable energy systems, such as solar inverters
• Uninterruptible power supplies (UPS)
• General-purpose inverters and converters

Technical Specifications

In conclusion, the STK534U362C-E from ON Semiconductor is a robust and efficient solution for power management and control in a variety of demanding applications. Its integrated design and protection features make it a reliable and convenient choice for engineers and designers looking to optimize their power systems.
