The SVD5803NT4G is a high-performance, N-channel power MOSFET designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This semiconductor device is engineered to meet the demanding requirements of modern electronic circuits, offering a combination of low on-resistance, high switching speed, and robust thermal performance. It is an ideal choice for a wide range of applications, including power management, DC-DC conversion, and motor control in both consumer and industrial electronics.

Key Features

• Low On-Resistance: The SVD5803NT4G features an extremely low on-resistance (R<sub>DS(on)), which minimizes conduction losses and improves overall efficiency, making it suitable for high-efficiency power supplies and other power-sensitive applications.
• High Switching Speed: With its fast switching capabilities, this MOSFET enables high-frequency operation, which is crucial for reducing the size of passive components and maintaining efficiency in switch-mode power supplies.
• Advanced Technology: Utilizing ON Semiconductor's advanced trench technology, the SVD5803NT4G offers superior performance in a compact form factor.

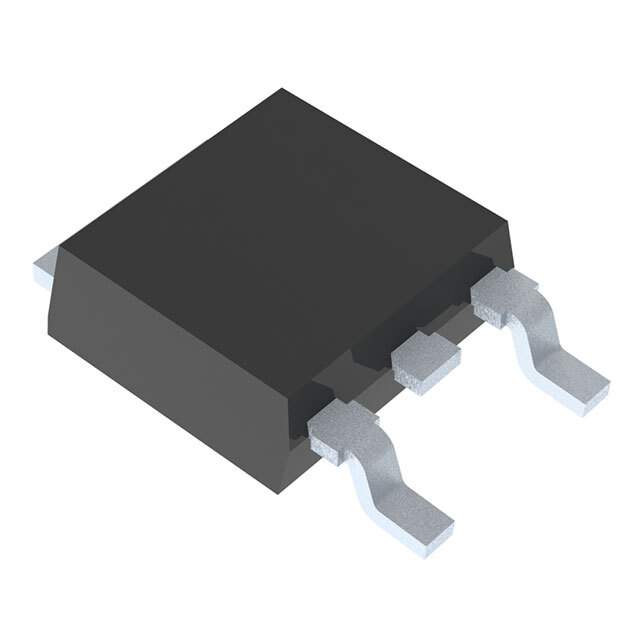

• Thermal Management: The power MOSFET is encapsulated in a TO-252 (DPAK) package, which provides excellent thermal characteristics and ensures reliable operation even under high temperature conditions.

Applications

The versatility of the SVD5803NT4G makes it suitable for a broad range of applications, including:

• Power supply units (PSUs)
• DC-DC converters
• Battery management systems
• Motor drives and controllers
• LED lighting
• Solar inverters
• Automotive applications

Product Specifications

In summary, the SVD5803NT4G from ON Semiconductor is a testament to the company's commitment to providing high-quality, energy-efficient components for today's electronic market. Its robust design, coupled with its high efficiency and reliability, make it an excellent choice for designers looking to optimize their power management solutions.
