Same model may have multiple batches, images only for reference.

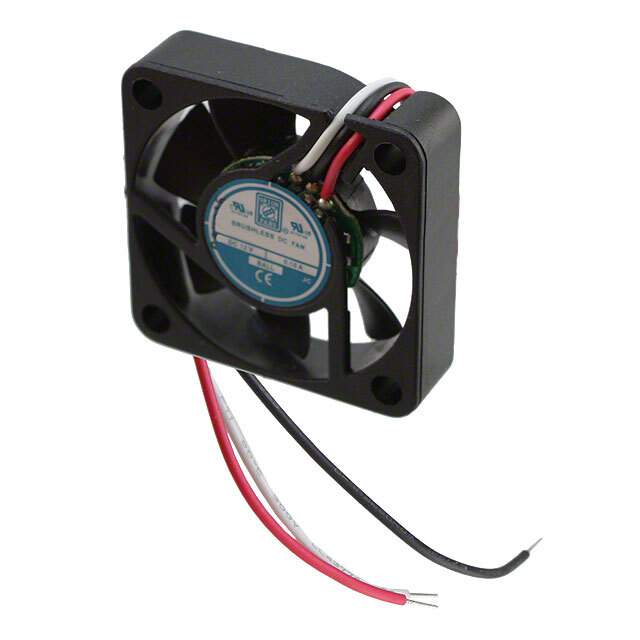

OD4010-12HB01A Real Image
Same model may have multiple batches, images only for reference.

OD4010-12HB01A

Part No OD4010-12HB01A
Manufacturer Orion Fans
Catalog DC Fans
Description FAN AXIAL 40X10.5MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 9.2 CFM (0.258m³/min) 3 Wire Leads
Datasheet
OD4010-12HB01A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Orion Fans
Series OD4010
Package Box
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 10.50mm
Air Flow 9.2 CFM (0.258m³/min)
Static Pressure 0.200 in H2O (49.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart, Speed Sensor (Tach)
Noise 33.4dB
Power (Watts) 720 mW
RPM 8000 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 149°F (-20 ~ 65°C)
Approval Agency CE, cURus, TUV, UR
Weight 0.441 lb (200.00 g)
Current Rating (Amps) 0.070A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 60000 Hrs @ 45°C
Base Product Number OD4010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 1053-1204,OD4010-12HB01AX,OD401012HB01A
Standard Package 1
Win Source Part Number 1182068-OD4010-12HB01A
Ultra Librarian 3D Model Ultra Librarian OD4010-12HB01A CAD Model

Description

The OD4010-12HB01A DC Brushless Fan is a high-performance tubeaxial fan manufactured by Orion Fans.

  • Voltage: 12VDC
  • Power: 720mW
  • Features: Auto Restart and Speed Sensor (Tach)
  • Lifetime: 60,000 hours @ 45°C
  • Noise Level: 33.4dB
  • Maximum RPM: 8000
  • Dimension: 40mm L x 40mm H
  • Weight: 0.441 lb (200.00 g)
  • Static Pressure: 0.200 in H2O (49.8 Pa)
  • Air Flow: 9.2 CFM (0.258m³/min)
  • Material: Polybutylene Terephthalate (PBT)
