Same model may have multiple batches, images only for reference.

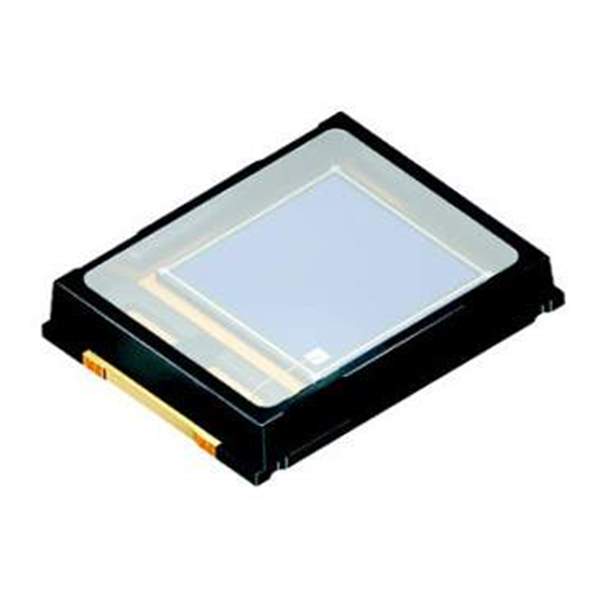

SFH 2200 Real Image
Same model may have multiple batches, images only for reference.

SFH 2200

Part No SFH 2200
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 940NM 2SMD / Photodiode 940nm 40ns 120° 2-SMD, No Lead
Datasheet
SFH 2200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photodiodes
Mfr ams-OSRAM USA Inc.
Series Power TOPLED®
Package Tape & Reel
Wavelength 940nm
Spectral Range 400nm ~ 1100nm
Diode Type PIN
Responsivity @ nm 0.7 A/W @ 940nm
Response Time 40ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 1nA
Active Area 7.02mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Other Names Q65112A0250,SFH2200,475-3517-6,SFH2200,475-3517-2,475-3517-1,SFH 2200
Standard Package 1,500
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 1234980-SFH 2200
Ultra Librarian 3D Model Ultra Librarian SFH 2200 CAD Model

Description

The SFH 2200 from ams-OSRAM USA Inc. is a Power TOPLED® series photodiode that comes in a tape and reel package.

  • Response Time: 40ns
  • Viewing Angle: 120°
  • Wavelength: 940nm
  • Spectral Range: 400nm ~ 1100nm
  • Responsivity: 0.7 A/W @ 940nm
  • Dark Current: 1nA
  • Active Area: 7.02mm2
  • Operating Temperature Range: -40°C to 85°C
  • Description: An ideal choice for applications that require high sensitivity and fast response time.
