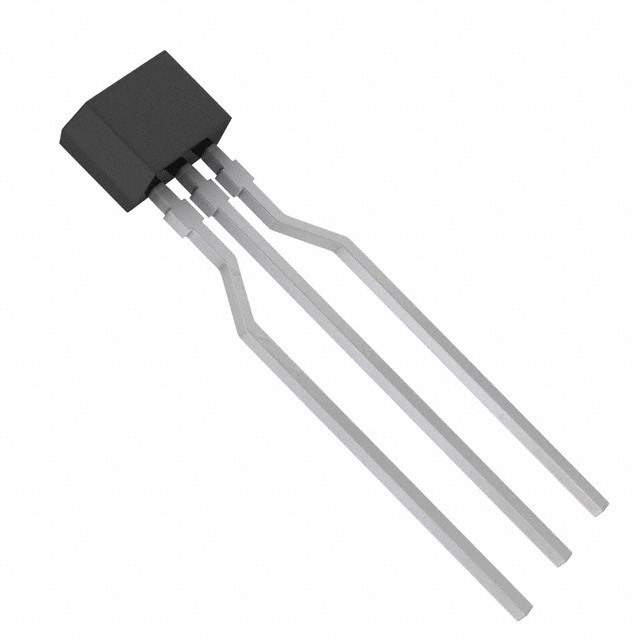

The 2SA1309AQ is a PNP bipolar junction transistor (BJT) manufactured by Panasonic. It is primarily designed for audio amplifier applications, specifically in the output stage or driver stage of high-fidelity audio amplifiers. The 'AQ' likely denotes a particular grade or specification variant within the 2SA1309 series, potentially related to gain characteristics or other electrical parameters. This transistor offers excellent linearity and is well-suited for delivering clean and powerful audio signals.

Applications

• Audio Amplifiers: Used extensively in audio power amplifier circuits, particularly in high-end stereo systems.
• Hi-Fi Equipment: Found in preamplifiers, power amplifiers, and integrated amplifiers designed for high-fidelity sound reproduction.
• Professional Audio Equipment: Employed in mixing consoles, studio monitors, and other professional audio applications.
• General-Purpose Amplification: Can be used in other analog circuits requiring a high-performance PNP transistor.

Features

• High Collector Current: Capable of handling significant collector current for driving speakers.
• Low Distortion: Minimizes harmonic distortion for clear and accurate sound reproduction.
• High Gain: Provides sufficient gain for amplifying weak audio signals.
• High Collector-Emitter Voltage: Offers a high breakdown voltage for reliable operation in high-voltage circuits.
• Excellent Linearity: Ensures accurate signal amplification across a wide range of frequencies.

Benefits

• Superior Sound Quality: Delivers high-fidelity sound reproduction with minimal noise and distortion.
• Increased Power Output: Enables higher power output levels for driving loudspeakers effectively.
• Enhanced System Performance: Improves the overall performance and reliability of audio amplifier circuits.
• Reduced Noise: Low noise characteristics contribute to a cleaner and more enjoyable listening experience.

Additional Details

The 2SA1309AQ typically comes in a TO-220 or similar through-hole package for easy mounting and heat dissipation. Important specifications include collector-emitter breakdown voltage, collector current, power dissipation, DC current gain (hFE), and transition frequency. Datasheets from Panasonic provide comprehensive information on these parameters, allowing designers to optimize the transistor's performance in specific applications. Proper heatsinking is crucial to prevent overheating and ensure reliable operation at high power levels. The 2SA1309AQ is often paired with complementary NPN transistors in push-pull amplifier configurations to achieve optimal performance.
