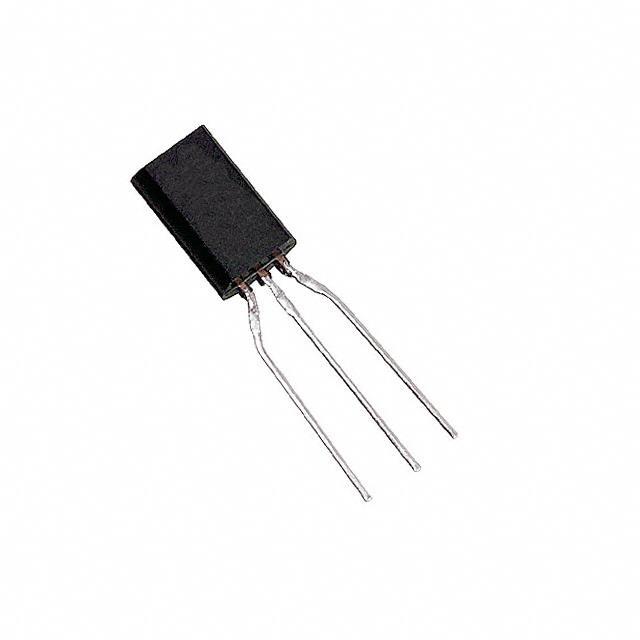

2SB12210QA Panasonic
Same model may have multiple batches, images only for reference.

2SB12210QA

Part No 2SB12210QA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 200V 0.07A TO-92NL
Datasheet
2SB12210QA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 70mA
Voltage - Collector Emitter Breakdown (Maximum) 200V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 5mA, 50mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 60 @ 5mA, 10V
Power - Max 1W
Frequency - Transition 80MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92NL-A1
Win Source Part Number 762495-2SB12210QA
Popularity Medium
Supply and Demand Status Balance
Family Name 2SB1221Q
Introduction Date October 08, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SB12210QA CAD Model

Description

The 2SB12210QA is a PNP transistor manufactured by Panasonic Electronic Components.

  • Frequency-Transition: 80MHz
  • Obsolete (EOL): Yes
  • Introduction Date: October 8, 1998
  • Win Source Part Number: 762495
  • Maximum Power: 1W
  • Maximum Voltage Collector Emitter Breakdown: 200V
  • Vce Saturation: 1.5V @ 5mA, 50mA
  • Current Collector (Ic) (Maximum): 70mA
  • DC Current Gain (hFE) (minimum) @ Ic, Vce: 60 @ 5mA, 10V

It is a good choice for use in various discrete semiconductor products applications.
