Same model may have multiple batches, images only for reference.

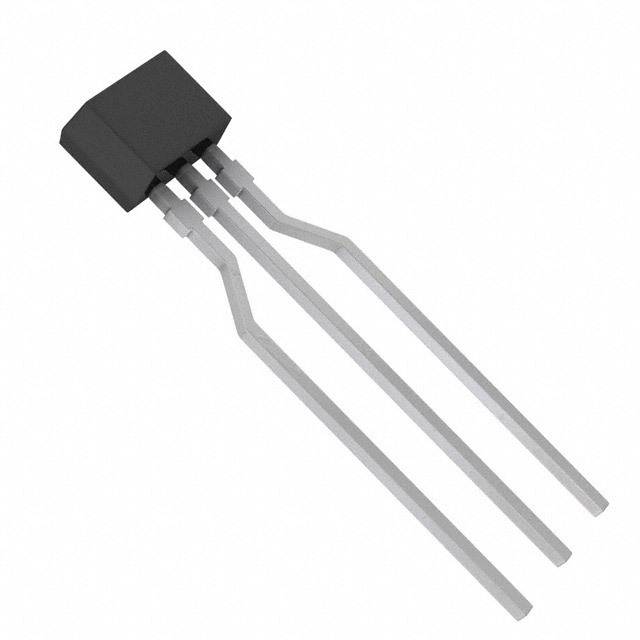

2SC3311ASA Panasonic
Same model may have multiple batches, images only for reference.

2SC3311ASA

Part No 2SC3311ASA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 0.1A NS-B1
Datasheet
2SC3311ASA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 300mV @ 10mA, 100mA
Collector Cut-off Current(Max) 1μA
Typical Gain (hFE) (Min) 290 @ 2mA, 10V
Maximum Power Dissipation 300mW
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package NS-B1
Win Source Part Number 1004369-2SC3311ASA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC3311ASA CAD Model

Description

The Panasonic Electronic Components transistor is an NPN transistor that can be used in various applications.

  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 50V
  • Typical Gain (hFE) (Min): 290 @ 2mA, 10V
  • Maximum Vce (sat): 300mV @ 10mA, 100mA
  • Collector Cut-off Current (Max): 1μA
  • Maximum Power Dissipation: 300mW
  • Frequency Transition: 150MHz
  • Operating Temperature: 150°C (TJ)
  • Package: NS-B1
  • Mounting Type: through hole
  • Supply and Demand Status: balanced
