Same model may have multiple batches, images only for reference.

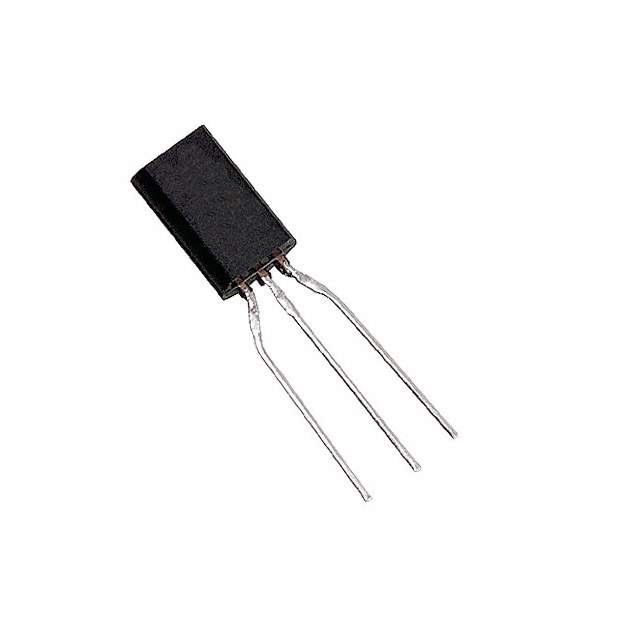

2SC3940AQA Real Image
Same model may have multiple batches, images only for reference.

2SC3940AQA

Part No 2SC3940AQA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 1A TO-92NL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 1A
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 400mV @ 50mA, 500mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 85 @ 500mA, 10V
Maximum Power Dissipation 1W
Frequency - Transition 200MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-92NL-A1
Win Source Part Number 1004406-2SC3940AQA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC3940AQA CAD Model

Description

The Panasonic Electronic Components 2SC3940AQA is an NPN transistor with a maximum current collector of 1A and a maximum collector-emitter breakdown voltage of 50V.

  • Type: NPN transistor
  • Maximum Current Collector: 1A
  • Maximum Collector-Emitter Breakdown Voltage: 50V
  • Transition Frequency: 200MHz
  • Typical Gain: 85 @ 500mA and 10V
  • Case/Package: TO-92NL-A1
  • Maximum Power Dissipation: 1W
  • Category: Discrete Semiconductor Products
  • Status: obsolete (EOL)
  • Popularity: medium
  • Supply and Demand Status: balance
