2SD21360RA Panasonic
Same model may have multiple batches, images only for reference.

2SD21360RA

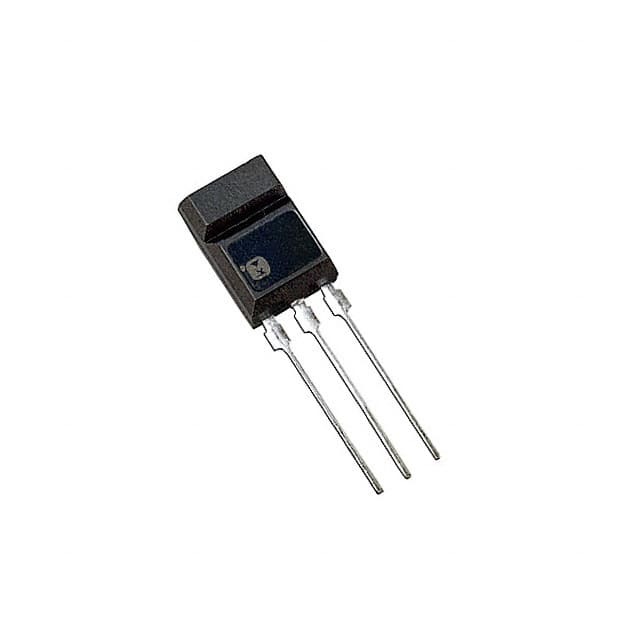

Part No 2SD21360RA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Panasonic Electronic Components
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 3 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 1.2V @ 375mA, 3A
Current - Collector Cutoff (Max) 300µA
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 1A, 4V
Power - Max 1.5 W
Frequency - Transition 220MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case 3-SIP
Supplier Device Package MT-3-A1
Base Product Number 2SD2136
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 1314359-2SD21360RA
Ultra Librarian 3D Model Ultra Librarian 2SD21360RA CAD Model

Description

The Panasonic Electronic Components 2SD2136 is a bipolar junction transistor with a maximum power of 1.5 W.

  • Manufacturer: Panasonic Electronic Components
  • Maximum Power: 1.5 W
  • Collector-Emitter Breakdown Voltage: 60 V
  • Maximum Collector Current: 3 A
  • Transistor Type: NPN
  • Vce Saturation: 1.2V @ 375mA, 3A
  • DC Current Cutoff: 300µA
  • DC Current Gain: 120 @ 1A, 4V
  • Frequency Transition: 220MHz
  • Mounting Type: Through Hole
  • Package: 3-SIP
  • Category: Discrete Semiconductor Products
  • Status: Obsolete
