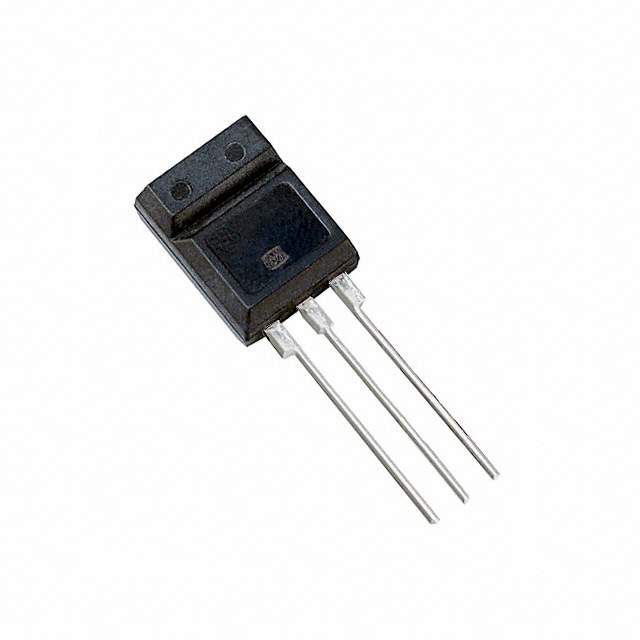

The 2SD2137A is an NPN silicon epitaxial transistor manufactured by Panasonic. It is designed for switching and amplifier applications, particularly in audio and general-purpose circuits.

Applications:

• Audio amplifiers (output stages, drivers)
• Switching circuits
• DC-DC converters
• Motor control circuits
• General-purpose amplification

Features:

• High collector current capability
• Low saturation voltage
• High hFE (current gain)
• Good linearity
• Fast switching speed

Benefits:

• Efficient power amplification
• Reduced power loss in switching applications
• Improved audio quality with low distortion
• Versatile usage in various circuit designs
• Reliable performance in demanding applications

Additional Details:

The 2SD2137A transistor typically features a collector-emitter voltage (Vceo) of 60V, a collector current (Ic) of 2A, and a power dissipation (Pc) of 1.2W. It is usually available in a through-hole package like TO-126 or similar. The device's high collector current capacity allows it to handle substantial loads, while its low saturation voltage ensures efficient operation. Its fast switching speed makes it suitable for use in DC-DC converters and other high-frequency applications. Always refer to the official Panasonic datasheet for precise specifications and application guidelines.
