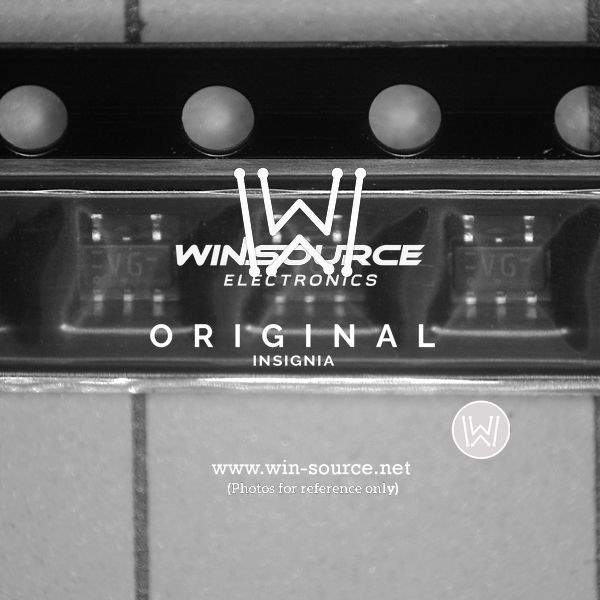

The 74LVC1G32GW is a single 2-input OR gate from Panasonic. This device offers high-speed performance and low power consumption, making it suitable for a variety of logic applications.

Applications

• Logic gates
• Signal routing
• Data selection
• Address decoding
• Control logic

Features

• Single 2-input OR gate
• Low voltage operation: 1.65V to 5.5V
• High-speed propagation delay: tpd = 2.5 ns (typical) at 3.3V
• Low power consumption: ICC = 10 µA (maximum) at 3.3V
• Over-voltage tolerant inputs
• Output drive capability: ±24 mA
• Available in very small packages (US8)

Benefits

• Provides basic OR logic function in a compact package.
• Enables high-speed operation with low power consumption.
• Allows for flexible system design with wide operating voltage range.
• Enhances system reliability with over-voltage tolerant inputs.
• Reduces board space with very small package option.

Additional Details

The 74LVC1G32GW is a single 2-input OR gate. The device performs the Boolean function Y = A + B. It operates over a wide voltage range (1.65V to 5.5V) and has over-voltage tolerant inputs, which protect the device from damage due to voltage spikes. The output can drive up to ±24 mA, making it suitable for driving other logic devices or external loads. The device is available in a US8 package.
