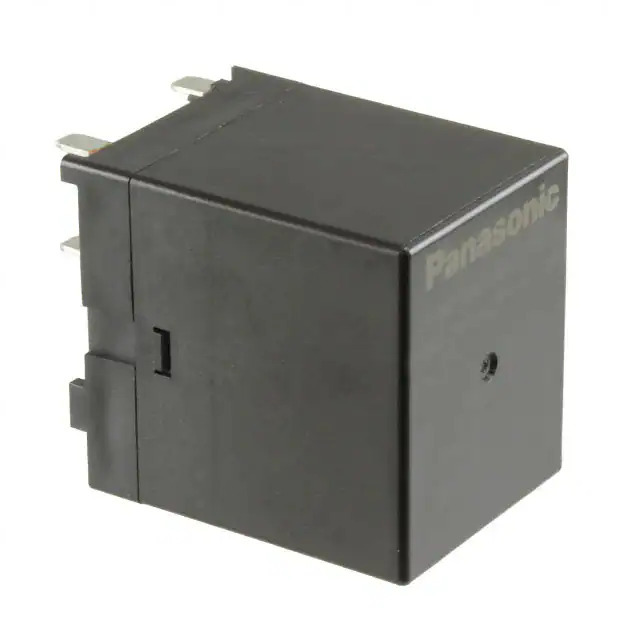

AHES3191 Panasonic
Same model may have multiple batches, images only for reference.

AHES3191

Part No AHES3191
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 35A 12V / General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-S
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Nom
Coil Current 157 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 76.6 Ohms
Base Product Number AHES31
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373455-AHES3191
Ultra Librarian 3D Model Ultra Librarian AHES3191 CAD Model

Description

The AHES3191 is a power relay manufactured by Panasonic Electric Works.

  • Series: HE-S
  • Mounting Type: Through Hole
  • Coil Voltage: 12VDC
  • Contact Form: DPST-NO (2 Form A)
  • Contact Rating: 35A
  • Construction: Sealed, flux-protected
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 0.6VDC
  • Operate Time: 30ms
  • Release Time: 10ms
  • Application: General Purpose
