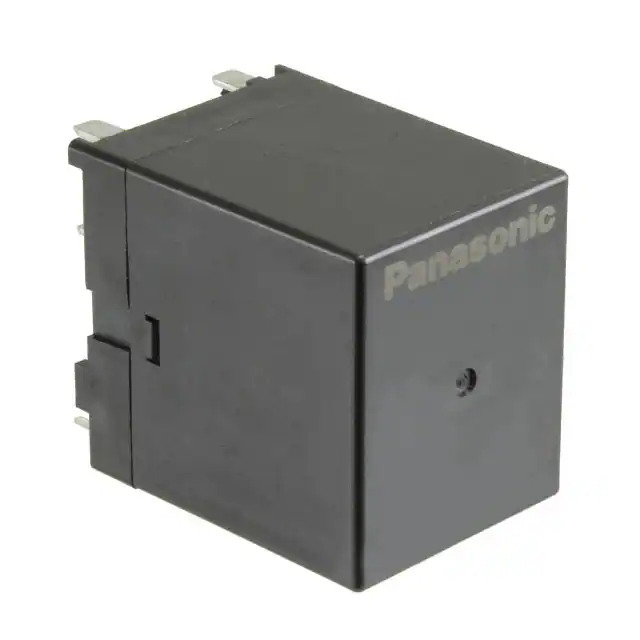

AHES4291 Panasonic
Same model may have multiple batches, images only for reference.

AHES4291

Part No AHES4291
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 3PST 35A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series HE-S
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form 3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Rating (Current) 35 A
Switching Voltage 277VAC - Nom
Coil Current 157 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 30 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 76.6 Ohms
Base Product Number AHES42
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1372738-AHES4291
Ultra Librarian 3D Model Ultra Librarian AHES4291 CAD Model

Description

The Panasonic Electric Works AHES4291 is a power relay from the HE-S series.

  • Series: HE-S
  • Coil Voltage: 12VDC
  • Contact Rating: 35A
  • Contact Form: 3PST-2NO/1NC (2 Form A, 1 Form B)
  • Switching Voltage: 277VAC
  • Coil Current: 157mA
  • Coil Type: Non-Latching
  • Protection: Sealed for Flux Protection
  • Coil Insulation: Class F
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 0.6VDC
  • Response Time: 30ms
  • Release Time: 10ms
  • Application: General-Purpose Applications
  • Feature: Long Electrical Life
