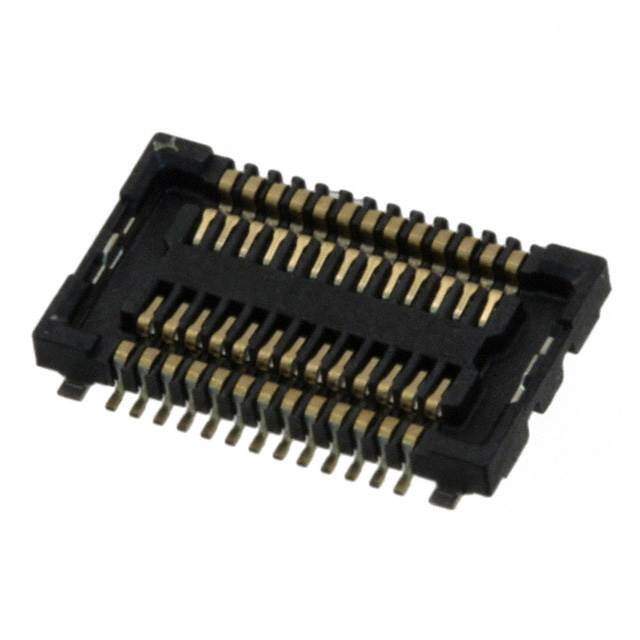

AXK7L26227G

Part No AXK7L26227G
Manufacturer Panasonic
Catalog Rectangular - Board to Board Connectors
Description CONN SOCKET FPC .4MM 26POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Center Strip Contacts
Number of Positions 26
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 079344-AXK7L26227G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AXK7L26227G CAD Model

Description

AXK7L26227G Electronic Connector

The AXK7L26227G connector is specifically designed to provide outstanding electrical connectivity in demanding environments. Its robust construction and advanced features make it suitable for a wide range of high-stakes applications.

  • Applications:
    • Renewable Energy Systems
    • Automotive Electronics
    • Networking Equipment
    • Industrial Control Systems
    • Robotics
  • Features and Benefits:
    • High-density contact arrangements
    • Superior mechanical performance
    • Enhanced electromagnetic compatibility
    • Heat-resistant materials for challenging environments
    • Streamlined for easy installation

    The innovative design and durability of the AXK7L26227G ensure it meets the highest standards of quality and reliability.
