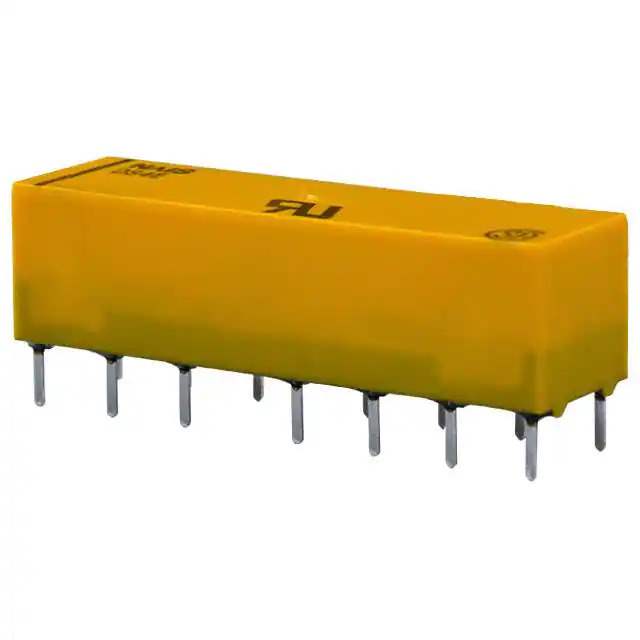

DS4E-S-DC24V Real Image
Same model may have multiple batches, images only for reference.

DS4E-S-DC24V

Part No DS4E-S-DC24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE 4PDT 2A 24VDC / General Purpose Relay 4PDT (4 Form C) Through Hole
Datasheet
DS4E-S-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series DS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver (Ag), Gold (Au)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number DS4E
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 586716-DS4E-S-DC24V
Ultra Librarian 3D Model Ultra Librarian DS4E-S-DC24V CAD Model

Description

The DS series signal relay is a versatile and reliable component for switching low current loads.

  • Contact Form: 4PDT (4 Form C)
  • Coil Voltage: 24VDC
  • Coil Type: Non-Latching
  • Contact Rating: 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Seal: Fully Sealed
  • Temperature Range: -40°C to 70°C
  • Standard Package: 50 pcs
  • Mounting Type: Through Hole
  • Manufacturer: Unspecified
