Same model may have multiple batches, images only for reference.

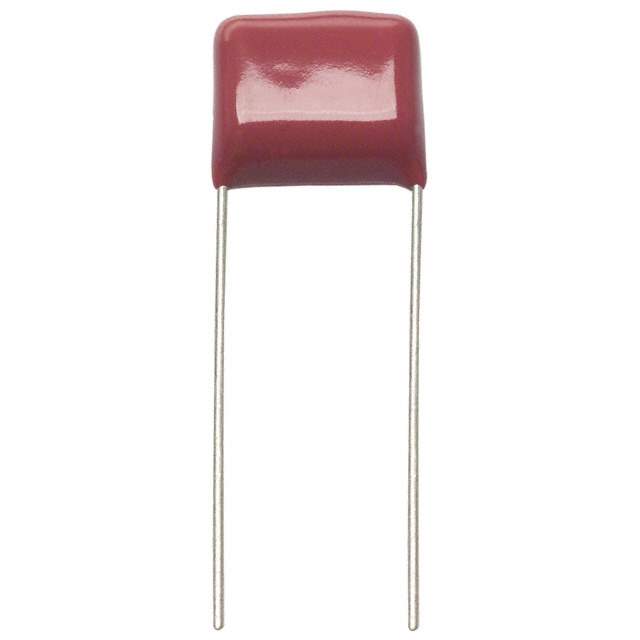

ECW-F4204JL Real Image
Same model may have multiple batches, images only for reference.

ECW-F4204JL

Part No ECW-F4204JL
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.2UF 5% 400VDC RADIAL / 0.2 µF Film Capacitor 141V 400V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-F(L)
Package Bulk
Capacitance 0.2 µF
Tolerance ±5%
Voltage Rating - AC 141V
Voltage Rating - DC 400V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.610" L x 0.339" W (15.50mm x 8.60mm)
Height - Seated (Max) 0.583" (14.80mm)
Termination PC Pins
Lead Spacing 0.492" (12.50mm)
Applications High Frequency, Switching
Base Product Number ECW-F4204
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names ECWF4204JL,P12106-NDR,P12106
Standard Package 100
Win Source Part Number 1038599-ECW-F4204JL
Ultra Librarian 3D Model Ultra Librarian ECW-F4204JL CAD Model

Description

The ECW-F4204JL is a film capacitor that is primarily used for high frequency and switching applications.

  • Application: High Frequency and Switching
  • Capacitance: 0.2 µF
  • Tolerance: ±5%
  • Voltage Rating: 400V DC, 141V AC
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Height: 0.583" (14.80mm)
  • Lead Spacing: 0.492" (12.50mm)
  • Temperature Range: -40°C to 105°C
  • Standard Package: 100 Pieces
  • Alternative Parts: ECW-F2W184JAQ, ECW-FD2W224JB, ECW-FD2W184JQ, R75MI32204030J, PHE450KB6220JR17, and B32652A4224J
  • Manufacturer: Panasonic Electronic Components
