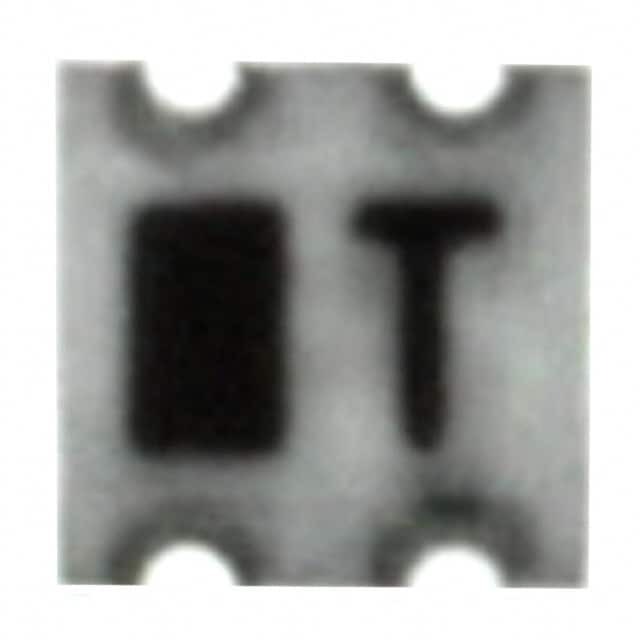

EHF-FD1542
Same model may have multiple batches, images only for reference.

EHF-FD1542

Part No EHF-FD1542
Manufacturer Panasonic
Catalog RF Directional Coupler
Description RF DIR COUPLER 1.85-1.95GHZ 0606 / RF Directional Coupler Cellular 1.85GHz ~ 1.95GHz 20dB 5W 0606 (1616 Metric)
Datasheet
EHF-FD1542 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Directional Coupler
Mfr Panasonic
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Coupler Type Standard
Frequency 1.85GHz ~ 1.95GHz
Coupling Factor 20dB
Applications Cellular
Insertion Loss 0.25dB
Power - Max 5W
Isolation 26dB
Package / Case 0606 (1616 Metric)
Supplier Device Package 0606
Base Product Number EHF-FD154
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 870274-EHF-FD1542
Ultra Librarian 3D Model Ultra Librarian EHF-FD1542 CAD Model

Description

The Panasonic RF Directional Coupler 870274-EHF-FD1542 is a high-quality electronic component designed for RF and wireless applications from Panasonic.

  • Frequency Range: 1.85GHz to 1.95GHz
  • Coupler Type: Standard
  • Coupling Factor: 20dB
  • Insertion Loss: 0.25dB
  • Isolation: 26dB
  • Power Handling: 5W
  • Application: Cellular
  • Package Size: 0606 (1616 Metric)
  • Standard Package: 500 pcs
  • Product Status: Obsolete
