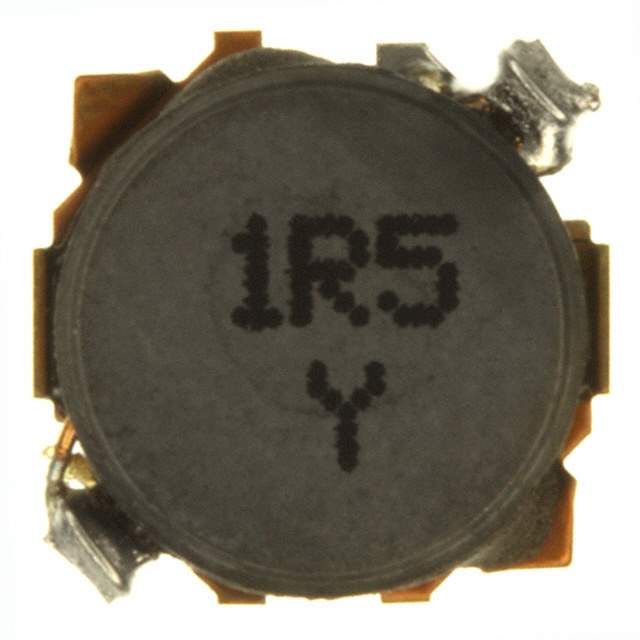

Same model may have multiple batches, images only for reference.

ELL-6GG1R5N

Name: ELL-6GG1R5N
Brand: Panasonic
SKU: 773766
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ELL-6GG1R5N
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 2.25A 36 MOHM / Power Choke Shielded Wirewound 1.5uH 30% 100KHz 2.25A 0.036Ohm DCR 2424 T/R
Datasheet	ELL-6GG1R5N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Panasonic Electronic Components
Series	G
Packaging	Reel package
Type	Wirewound
Inductance	1.5μH
Tolerance	±30%
Current Rating	2.25A
Current - Saturation	2.3A
Shielding	Shielded
DC Resistance (DCR)	36 mOhm
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum)	0.063" (1.60mm)
Win Source Part Number	773766-ELL-6GG1R5N
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ELL6GG
Introduction Date	October 24, 2006
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ELL-6GG1R5N CAD Model

Alternative Products

Description

The Panasonic Electronic Components 773766-ELL-6GG1R5N is a wirewound inductor.

Current Rating: 2.25A
Inductance: 1.5μH
Shielding: Shielded
Tolerance: ±30%
Mounting: SMD
DC Resistance: 36 mOhm
Height when seated: 0.063" (1.60mm)
Supply and Demand Status: Limited
