Same model may have multiple batches, images only for reference.

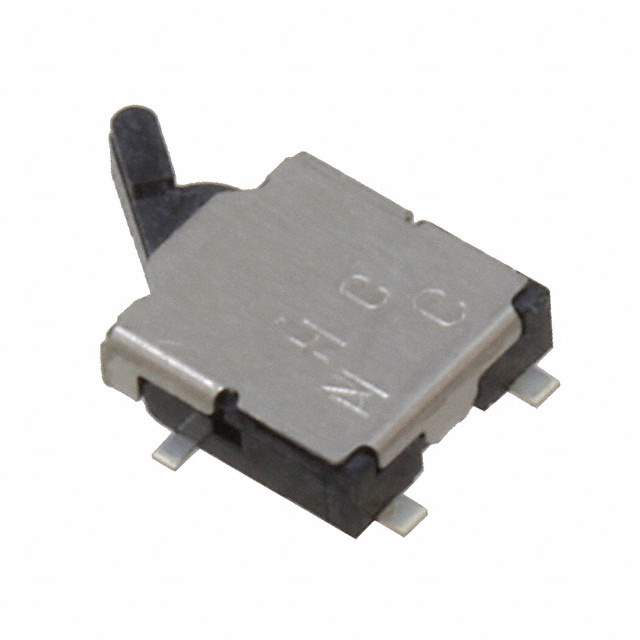

ESE-18L12D Real Image
Same model may have multiple batches, images only for reference.

ESE-18L12D

Part No ESE-18L12D
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount, Right Angle
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electronic Components
Series ESE18
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style SMD (SMT) Tab
Operating Force 31gf
Temperature Range - Operating -10°C ~ 60°C
Operating Position 0.122" (3.1mm)
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-18
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Other Names ESE18L12D,10-ESE-18L12DTR,10-ESE-18L12DCT,10-ESE-18L12DDKR
Standard Package 5,000
Win Source Part Number 1057962-ESE-18L12D
Ultra Librarian 3D Model Ultra Librarian ESE-18L12D CAD Model

Description

The Panasonic Electronic Components ESE-18L12D is a limit switch with an SPST-NO circuit and an off-mom switch function.

  • Actuator Type: angled toggle (detector)
  • Operating Temperature: -10°C to 60°C
  • Voltage Rating: 5VDC
  • Current Rating: 10mA
  • Mechanical Life: 50,000 cycles
  • Operating Force: 31gf
  • Mounting: surface mount, right angle
  • Packaging: tape and reel package
  • Standard Package: 5,000
  • ECCN: EAR99
