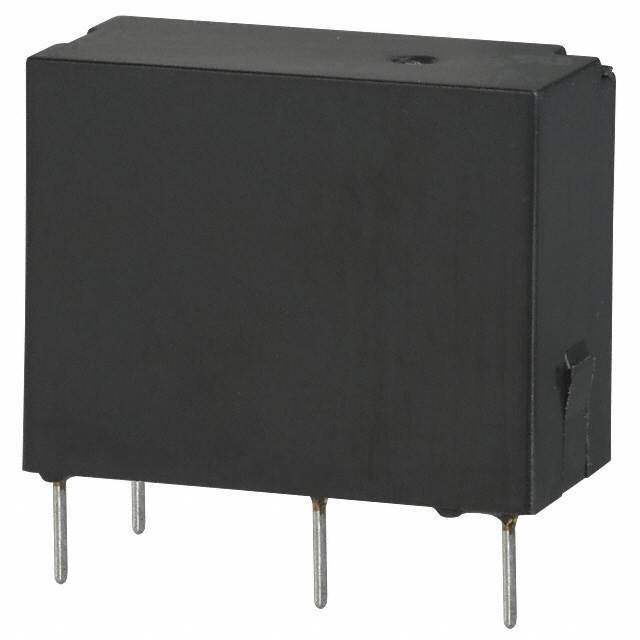

JQ1-12V-F Real Image
Same model may have multiple batches, images only for reference.

JQ1-12V-F

Part No JQ1-12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 5A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 20ms
Release Time 10ms
Features Insulation - Class E
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 205745-JQ1-12V-F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JQ1-12V-F CAD Model

Description

The JQ1-12V-F is a SPDT (1 Form C) general-purpose relay manufactured by Panasonic Electric Works.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Operate Time: 20ms
  • Contact Rating (Current): 5A
  • Switching Voltage: 250VAC, 110VDC - Max
  • Turn-On Voltage (Max): 9 VDC
  • Turn-Off Voltage (Min): 0.6 VDC
  • Release Time: 10ms
  • Coil Power: 400 mW
  • Mounting: Through-hole
  • Insulation: Class E
  • Category: Relays
