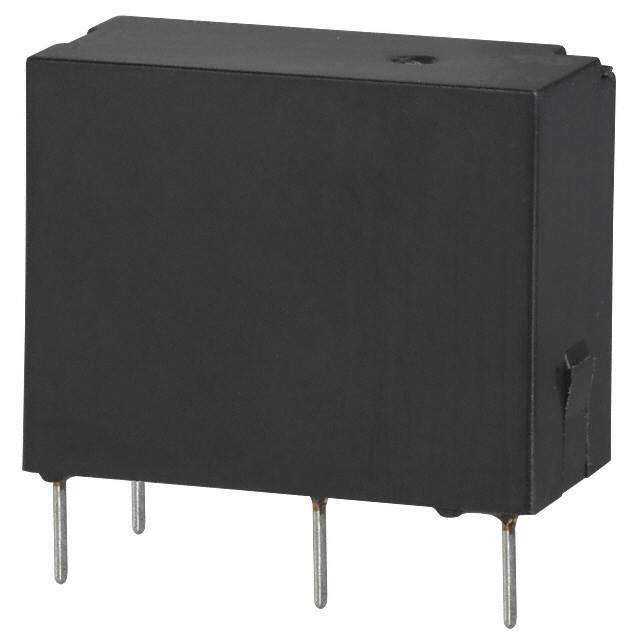

JQ1AP-5V Real Image
Same model may have multiple batches, images only for reference.

JQ1AP-5V

Part No JQ1AP-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description HIGH ELECTRICAL MECHANICAL NOISE IMMUNITY RELAY | RELAY GEN PURPOSE SPST 10A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete
Mounting Style Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 110VDC - Max
Coil Current 40.0mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class E
Must Operate Voltage 4 VDC
Must Release Voltage 0.25 VDC
Operate Time 5ms
Release Time 2ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 125 Ohms
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1191739-JQ1AP-5V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JQ1AP-5V CAD Model

Description

The JQ1AP-5V is a high-performance, low-power, and low-voltage general-purpose relay from Panasonic Electric Works.

  • Contact Form: SPST-NO
  • Contact Material: Silver Alloy
  • Coil Voltage: 5VDC
  • Maximum Voltage: 250VAC or 110VDC
  • Maximum Current: 10A
  • Operate Time: 5ms
  • Release Time: 2ms
  • Mounting Style: Through-Hole
  • Terminations: PC Pin
