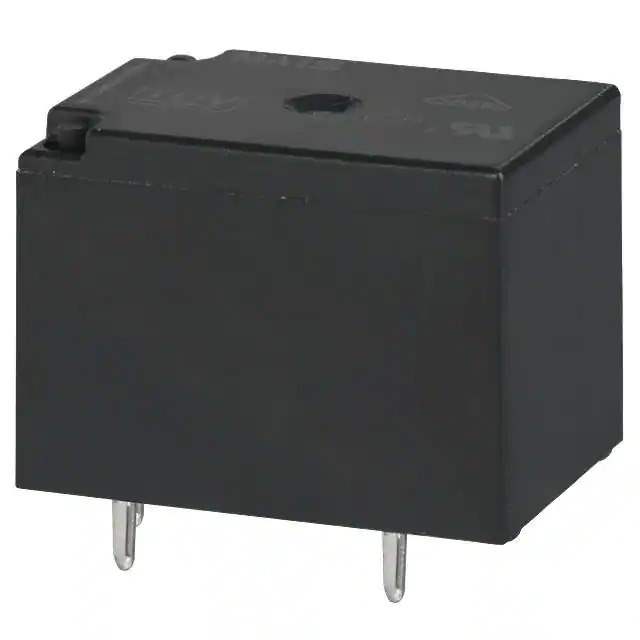

JS1-B-24V-F Real Image
Same model may have multiple batches, images only for reference.

JS1-B-24V-F

Part No JS1-B-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JS
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 100VDC - Max
Coil Current 15 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class B
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.6 kOhms
Base Product Number JS1-B
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 876236-JS1-B-24V-F
Ultra Librarian 3D Model Ultra Librarian JS1-B-24V-F CAD Model

Description

The Panasonic JS1-B-24V-F is a power relay designed for various applications.

  • Termination Style: PC Pin
  • Package: Bulk
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 1.6 kOhms
  • Coil Current: 15 mA
  • Application: General Purpose
  • Coil Voltage: 24VDC
  • Contact Rating: 10 A
  • Switching Voltage: 250VAC, 100VDC
  • Protection: Fully Sealed
  • Temperature Range: -40°C to 85°C
  • Series: JS
  • Status: Obsolete
