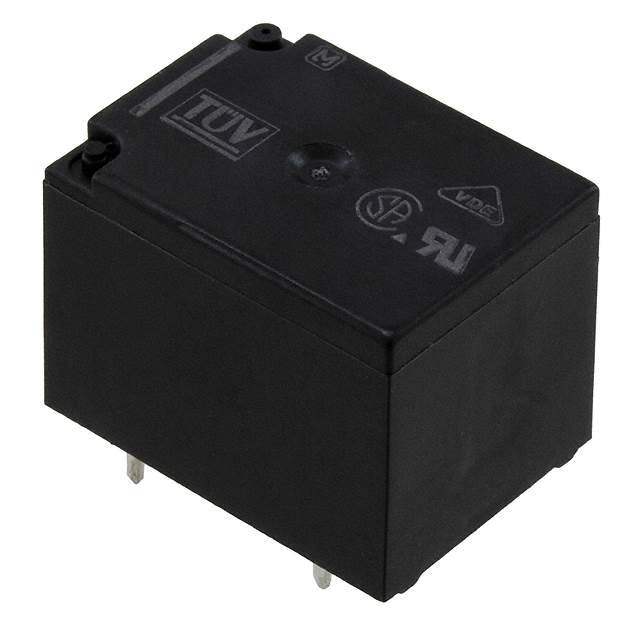

JS1F-12V-F Real Image
Same model may have multiple batches, images only for reference.

JS1F-12V-F

Part No JS1F-12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 100VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 143875-JS1F-12V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JS1F-12V-F CAD Model

Description

The Panasonic Electric Works JS1F-12V-F is a sealed SPDT (1 Form C) general-purpose relay with a coil voltage of 12VDC.

  • Contact Rating (current): 10A
  • Switching Voltage: 250VAC, 100VDC - Max
  • Operating Temperature: -40°C to 70°C
  • Packaging: Bulk
  • Coil Resistance: 400 Ohms
  • Coil Current: 30mA
  • The JS1F-12V-F is ideal for applications requiring flux protection.
