Same model may have multiple batches, images only for reference.

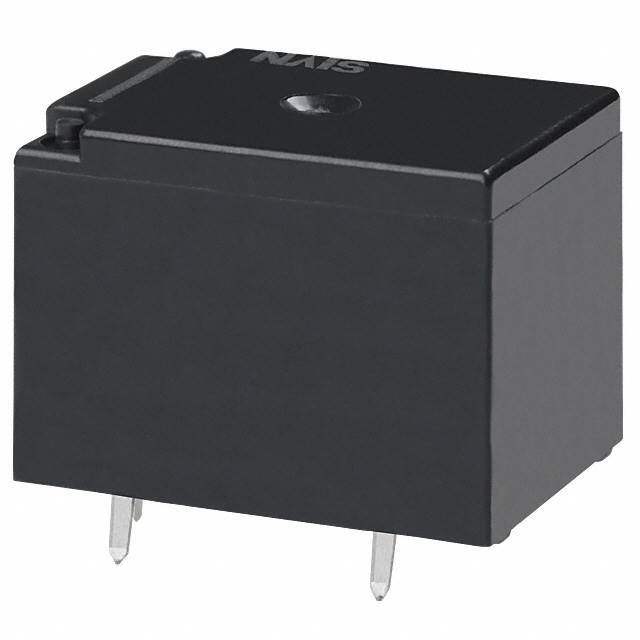

JSM1-12V-4 Real Image
Same model may have multiple batches, images only for reference.

JSM1-12V-4

Part No JSM1-12V-4
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 10A 12V
Datasheet
JSM1-12V-4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type Automotive
Coil Type Non Latching
Coil Current 53.3mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10A
Switching Voltage 16VDC - Max
Turn On Voltage (Max) 6.3 VDC
Turn Off Voltage (Min) 0.9 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 640 mW
Coil Resistance 225 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 205774-JSM1-12V-4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JSM1-12V-4 CAD Model

Description

The Panasonic Electric Works JSM1-12V-4 is a reliable and cost-effective SPDT (1 Form C) automotive relay.

  • The relay has a coil voltage of 12VDC and a coil resistance of 225 Ohms.
  • It has a contact rating of 10A and can switch up to 16VDC.
  • The relay operates within a temperature range of -40°C to 85°C and has a sealed - fully seal rating.
  • The JSM1-12V-4 is available in bulk packaging and is a reliable solution for various automotive applications.
