Same model may have multiple batches, images only for reference.

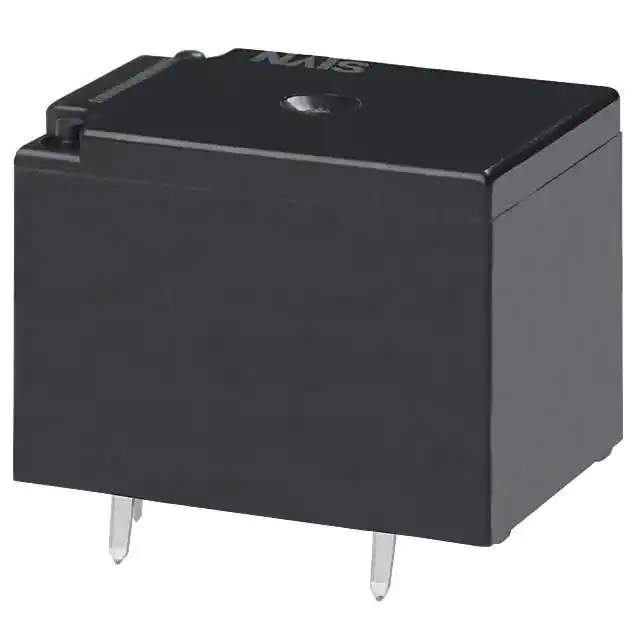

JSM1-12V-5 Real Image
Same model may have multiple batches, images only for reference.

JSM1-12V-5

Part No JSM1-12V-5
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPDT 15A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic
Series JS-M
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 53.3 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 16VDC - Max
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 640mW
Coil Resistance 225 Ohms
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1348662-JSM1-12V-5
Ultra Librarian 3D Model Ultra Librarian JSM1-12V-5 CAD Model

Description

The Panasonic JS-M series relay is an automotive relay with a PC pin termination style.

  • Termination Style: PC Pin
  • Sealed: Fully Sealed
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver Alloy, Cadmium Free
  • Standard Package: 100
  • Coil Resistance: 225 Ohms
  • Coil Current: 53.3 mA
  • Operating Time: 10 ms
  • Release Time: 10 ms
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 15 A
  • Switching Voltage: 16VDC - Max
  • Coil Type: Non-Latching
  • Coil Power: 640mW
  • Operating Temperature: -40°C ~ 85°C
  • Status: Obsolete
  • Application: Automotive
