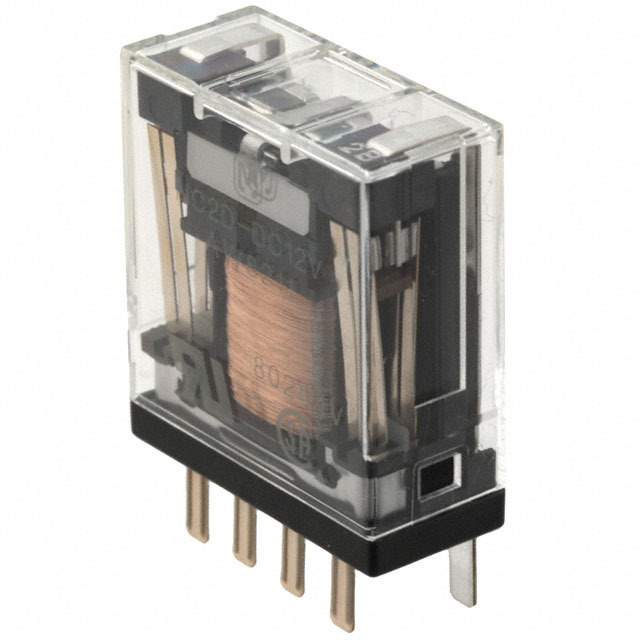

NC2D-DC24V Real Image
Same model may have multiple batches, images only for reference.

NC2D-DC24V

Part No NC2D-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 24V
Datasheet
NC2D-DC24V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 15mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC - Max
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 20ms
Release Time 10ms
Mounting Socketable
Termination Style Plug In
Coil Power 360 mW
Coil Resistance 1.6 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 209046-NC2D-DC24V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NC2D-DC24V CAD Model

Description

The 209046-NC2D-DC24V is a general-purpose relay designed by Panasonic Electric Works. It is a high-quality relay that is suitable for various applications.

  • Description: This relay has a DPDT contact form and can switch up to 5A of current.
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.6 kOhms
  • Description: The 209046-NC2D-DC24V is a non-latching relay that operates in 20ms and has a release time of 10ms.
  • Description: This relay is socketable and can be easily mounted on a PCB.
  • Description: It is also designed to withstand a wide temperature range from -40°C to 70°C.
  • Description: If you are looking for a reliable and efficient general-purpose relay, the 209046-NC2D-DC24V is an excellent choice.
